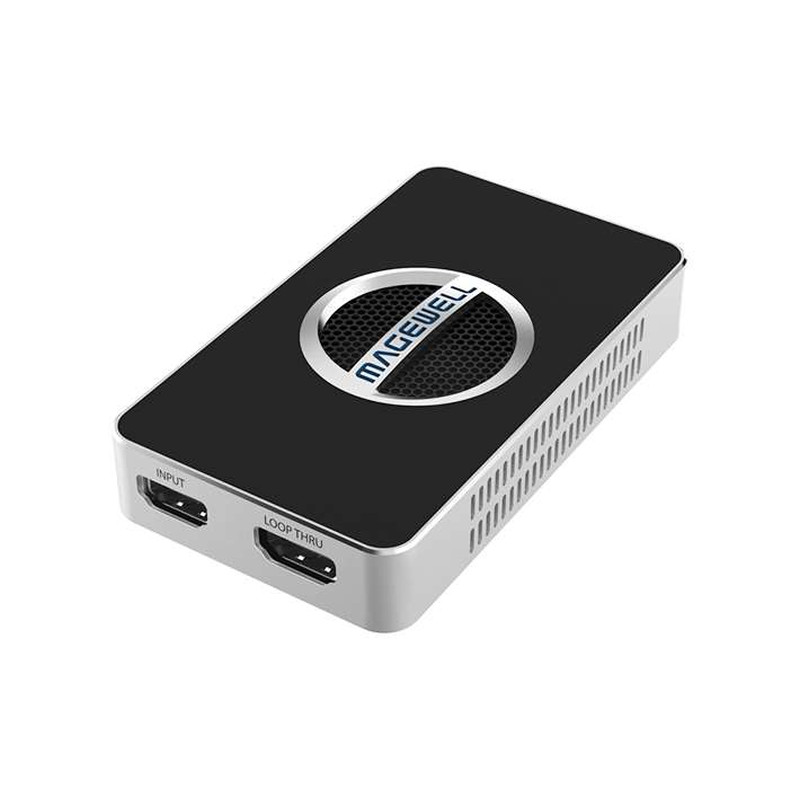

Magewell USB Capture HDMI 4K Plus, USB3.0 DONGLE, 1-channel 4K/30fps HDMI with loop-through out, plus extra audio mic in/out, Plug and Play, Windows/Linux/Mac (32090)

RECOMMENDED OS (TESTED)
- Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
- Linux:
* Ubuntu 12.04/14.04/16.04 (x86 & x64)
* Ubuntu 17.04/17.10 (x64)
* CentOS 6.5/7.2 (x86 & x64)
* Fedora 25/26 (x64)
* Red hat 6.5 (x86 & x64)
- Mac:
* OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4
* macOS 10.12/10.13.2/10.13.3

SUPPORTED APIs
- Windows:
* DirectShow
* Wave API/DirectSound/WASAPI
- Linux:
* V4L2
* ALSA
- OS X/macOS:
* QuickTime
* AV Foundation

SUPPORTED SOFTWARE
- VLC
- VirtualDub
- OBS
- XSplit
- vMix
- VidBlaster
- Wirecast
- Microsoft Media Encoder
- Adobe Flash Media Encoder
- Any other DirectShow, V4L2, QuickTime, AV Foundation based encoding or streaming software

INPUT INTERFACES
- HDMI
* DVI-D 1.0
* HDMI 1.4
* HDMI 2.0
- 3.5mm audio jack
* Microphone interface

HOST INTERFACE
- USB 3.0
* compatible with USB 2.0
* compatible with USB 3.1 Gen 1

OUTPUT INTERFACE
- 3.5mm audio jack
* headphones interface

LOOP-THROUGH INTERFACE
- HDMI
* DVI-D 1.0
* HDMI 1.4
* HDMI 2.0

INPUT FEATURE
- Support for input video resolutions up to 4096×2160

HDMI SPECIFIC FEATURES
- 600MHz HDMI receiver
- Adaptive HDMI equalizer
- Support for customized EDID
- Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
- Full colorimetry support
- Support for up to 4096x2160 4:4:4 60fps input signals
- Support for 2 channel IEC60958 audio streams
- Support for extraction of audio formation information & channel status data
- Support for extraction of video timing information
- Support for extraction of 3D format information
- Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode

ANALOG AUDIO FEATURES
- Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack Line Out
- Capture of analog audio via 3.5 mm microphone interface
- Integrate the functions of a USB audio card. Playback audio via 3.5 mm headphones interface
* Support for recording the playback audio of the compute

VIDEO CAPTURE FORMAT
- Support for capture resolutions up to 4096×2160
- Support for output frame rates up to 120fps (Actual output frame rate can be limited by the USB bandwidth and internal working frequency - Typical output frame rates on the Intel USB3.0 controller are as follows)
* 1920×1080 YUY2 (up to 90fps)
* 3840×2160 NV12 (up to 30fps)
- Support for NV12 & l420 4:2:0 8-bit (up to 4096×2160)
- Support for YUY2 & UYVY 4:2:2 8-bit (up to 4096×2160)
- Support for RGB24 & RGB32 4:4:4 8-bit (up to 2048×2160)
- The default capture formats are YUY2 & NV12
* More capture formats can be set using USB Capture Utility

VIDEO PROCESSING FEATURES
- Video processing pipelines with 640 Mpixels/s processing bandwidth
- Video cropping
- Video scaling
- Video de-interlacing
* Weave
* Blend top & bottom field
* Top field only
* Bottom field only
- Video aspect ratio conversion
* Auto or manual selection of input aspect ratio
* Auto or manual selection of output aspect ratio
* Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
- Video color format conversion
* Auto or manual selection of input color format & quantization range
* Auto or manual selection of output color format, quantization range & saturation range
* Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
* Support for Limited or Full quantization range
* Support for Limited, Full & ‘Extended gamut’ saturation range
- Video frame rate conversion
- Vertical flip and mirror

MULTIPLE DEVICES ON ONE COMPUTER
- Support for connecting multiple USB devices to one system
- Support for setting the device serial number as the device name shown in the system using USB Capture Utility

SDK
- The USB Capture SDK provide functions including signal status extraction, capture configuration, etc.

FIRMWARE UPGRADE
- Multiple devices in one system can be upgraded simultaneously

LED INDICATOR
- Status LEDs indicate the working state of each channel:
* Pulsing slowly: idle
* On: input signal locked
* Off: input signal unlocked
* Double blinks: memory failed or FPGA configuration failed

FORM FACTOR
- 98.1(L) × 56.8(W) × 17(H) mm

POWER CONSUMPTION
- 5V max current: 1.4A
- Max power consumption: 7W

WORKING ENVIRONMENT
- Operating temperature: 0C to 40 deg C
- Storage temperature: -20C to 70 deg C
- Relative Humidity: 5% to 90% non-condensing
