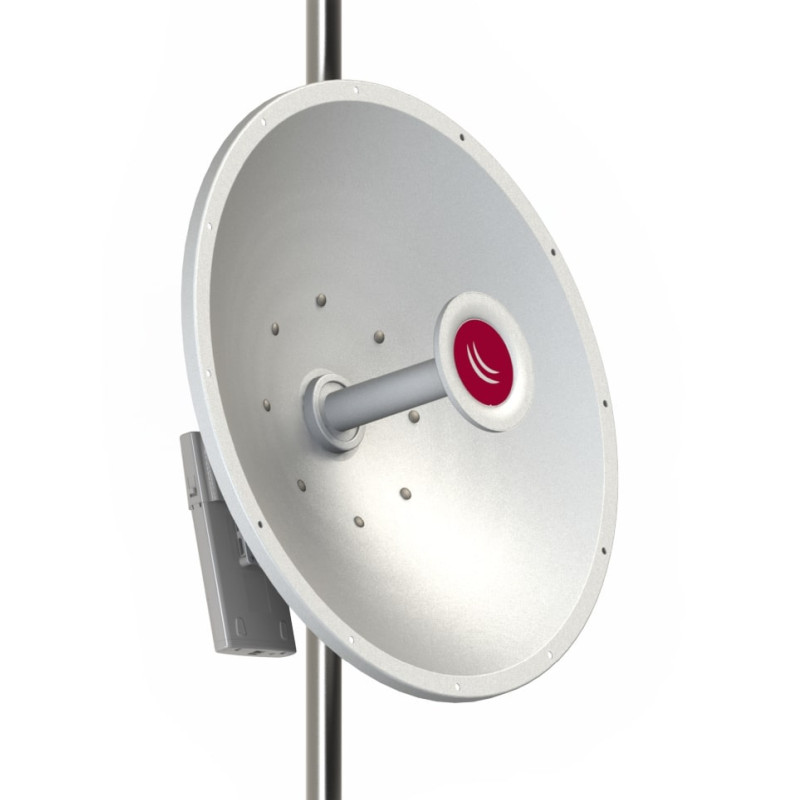

Mikrotik mANT 30dBi 5Ghz Parabolic Dish antena, precizno montiranje (MTAD-5G-30D3-PA)

MIKROTIK

Mikrotik mANT 30dBi 5Ghz Parabolic Dish antena, precizno montiranje (MTAD-5G-30D3-PA)

267,94 €

Cijena uključuje PDV

Najniža cijena u zadnjih 30 dana: 267,94 €

Dostupno

Specifikacije

Antenna gain30dbi

Frequency Range4.7-5.875 GHz

PolarizationVertical and Horizontal

Beamwidth3 deg

VSWR< 1.4 typ, < 1.8 max

Port to Port Isolation>40dB min

Front-to-Back Ratio>30 dB

Cross Polarization>40 dB

Power Rating100W

Impedance50 ohms

Elevation adjustment range+/- 15 deg

Dimensions (Diameter×Depth)70×45 cm

Weight5.7 kg

ReflectorAluminum

Outdoor RatingETSI EN 300 019-2-4

StandardsEN 302 326 DN1, DN2, DN3, DN5

Wind Survivability201 kph (125 mph)

Wind Load (125 mph)181.4 kg (400 lbs)

Operating Temperature50C to 80C(-49F to 158F)

Pole Mount Diameter Range3 to 10 cm

Connector2× RP-SMA Female (outside thread)

Packaged size73×73×20 cm

Packaged weight8.4 kg

SKU: 32465

Opis proizvoda

- mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards
- Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable
* Basebox wireless device pictured for illustrative purposes (It is not included)

Specification
- Antenna gain: 30dbi
- Frequency Range: 4.7-5.875 GHz
- Polarization: Vertical and Horizontal
- Beamwidth: 3 deg
- VSWR: < 1.4 typ, < 1.8 max
- Port to Port Isolation: >40dB min
- Front-to-Back Ratio: >30 dB
- Cross Polarization: >40 dB
- Power Rating: 100W
- Impedance: 50 ohms
- Elevation adjustment range: +/- 15 deg
- Dimensions (Diameter×Depth): 70×45 cm
- Weight: 5.7 kg
- Reflector: Aluminum
- Outdoor Rating: ETSI EN 300 019-2-4
- Standards: EN 302 326 DN1, DN2, DN3, DN5
- Wind Survivability: 201 kph (125 mph)
- Wind Load (125 mph): 181.4 kg (400 lbs)
- Operating Temperature: -50C to 80C(-49F to 158F)
- Pole Mount Diameter Range: 3 to 10 cm
- Connector: 2× RP-SMA Female (outside thread)
- Packaged size: 73×73×20 cm
- Packaged weight: 8.4 kg
