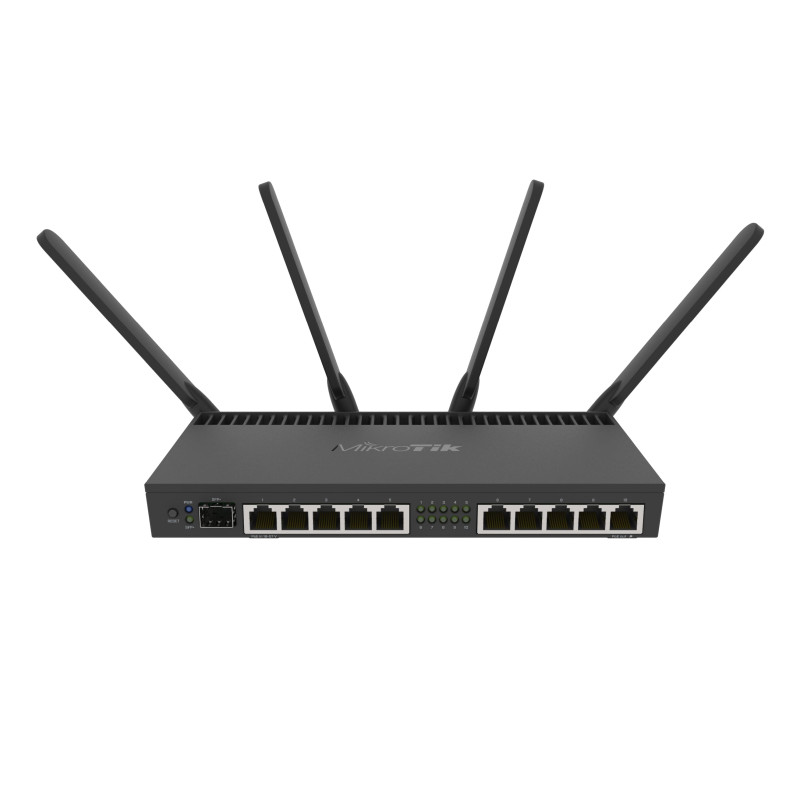

Mikrotik RouterBOARD 4011iGS+5HacQ2HnD, Cortex A15 CPU (4-cores), 1GB RAM, 10×GLAN, 1×SFP+, 2.4Ghz/5Ghz 802.11b/g/n/ac, RouterOS L5, desktop kućište, PSU
Opis proizvoda
- The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit
- The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black
- RB4011iGS+5HacQ2HnD-IN (WiFi model) is dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5GHz
- For legacy devices, the unit also has a dual chain 2GHz wireless card installed in miniPCI-e slot
- RB4011iGS+5HacQ2HnD-IN (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations)
Specifications
- Architecture: ARM 32bit
- CPU: AL21400
- CPU core count: 4
- CPU nominal frequency: 1.4 GHz
- Dimensions: 228×120×30 mm
- License level: 5
- Operating System: RouterOS
- Size of RAM: 1 GB
- Storage size: 512 MB
- Storage type: NAND
- Tested ambient temperature: -40C to 45C
POWERING
- PoE in: Passive PoE
- PoE out: Passive PoE up to 57V
- PoE in input Voltage: 18-57 V
- Number of DC inputs: 2 (DC jack, PoE-IN)
- DC jack input Voltage: 12-57 V
- Max out per port output (input > 30 V): 420 mA
- Max out per port output (input < 30 V): 600 mA
- Max total out (A): 600 mA
- Max power consumption: 44 W
- Max power consumption without attachments: 23 W
WIRELESS
- Wireless 5 GHz number of chains: 4
- Wireless 5 GHz standards: 802.11ac MU-MIMO
- Antenna gain dBi for 5 GHz: 3
- Wireless 5 GHz chip model: R11e-2HnD
- Wireless 2.4 GHz number of chains: 2
- Wireless 2.4 GHz standards: 802.11b/g/n
- Antenna gain dBi for 2.4 GHz: 3
- Wireless 2.4 GHz chip model: R11e-2HnD
ETHERNET
- 10/100/1000 Ethernet ports: 10
FIBER
- SFP+ ports: 1
PERIPHERALS
- MiniPCI-e slots: 1
- Serial port: RJ45
OTHER
- PCB temperature monitor: Yes
- Voltage Monitor: Yes
INCLUDED PARTS

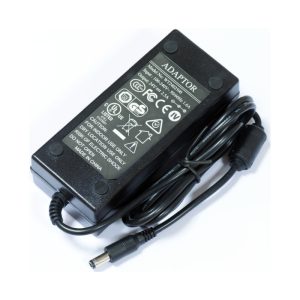

- 24V / 2.5A power adapter
- IEC cord
