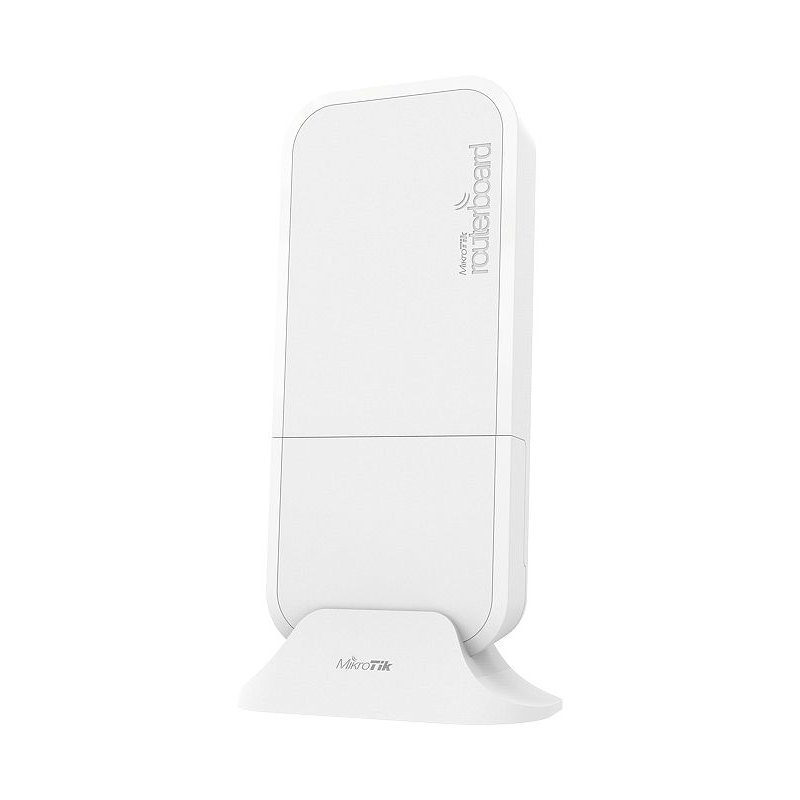

Mikrotik wAP ac LTE6 Kit, 710MHz CPU, 128MB RAM, 2×GLAN, 2.4Ghz/5Ghz 802.11b/g/n/an/ac, LTE CAT6 modem, MicroSIM, RouterOS L4, vanjsko kućište, PSU, Gbit PoE inj.

MIKROTIK

Mikrotik wAP ac LTE6 Kit, 710MHz CPU, 128MB RAM, 2×GLAN, 2.4Ghz/5Ghz 802.11b/g/n/an/ac, LTE CAT6 modem, MicroSIM, RouterOS L4, vanjsko kućište, PSU, Gbit PoE inj.

197,64 €

Cijena uključuje PDV

Sidrena cijena (2026-09-10): 197,64 €

Dostupno

Specifikacije

ArchitectureARM 32bit

CPUIPQ-4018

CPU core count4

CPU nominal frequency716 MHz

IPsec hardware accelerationYes

RouterOS license4

Size of RAM128 MB

Storage size16 MB

Storage typeFLASH

MTBFApproximately 200.000 hours at 25C

Tested ambient temperature30°C to 60°C

PoE in802.3af/at

PoE in input Voltage18-57 V

Number of DC inputs2 (DC jack, PoE-IN)

DC jack input Voltage10-57 V

Max power consumption16 W

Max power consumption without attachments10 W

FAN countPassive

2G CategoryClass12

2G bands2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)

3G CategoryR7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)

3G bands1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)

LTE Category6 (300Mbit/s Downlink, 50Mbit/s Uplink)

LTE FDD bands1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)

LTE TDD bands38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)

Wireless 2.4 GHz Max data rate300 Mbit/s

Wireless 2.4 GHz number of chains2

Wireless 2.4 GHz standards802.11b/g/n

Antenna gain dBi for 2.4 GHz2.5

Wireless 2.4 GHz chip modelIPQ-4018

Wireless 2.4 GHz generationWi-Fi 4

Wireless 5 GHz Max data rate867 Mbit/s

Wireless 5 GHz number of chains2

Wireless 5 GHz standards802.11a/n/ac

Antenna gain dBi for 5 GHz2.5

Wireless 5 GHz chip modelIPQ-4018

Wireless 5 GHz generationWi-Fi 5

10/100/1000 Ethernet ports2

Number of SIM slots1 Modem (Micro SIM)

MiniPCI-e slots1

PCB temperature monitorYes

Voltage MonitorYes

CertificationCE, FCC, IC, EAC, ROHS

SKU: 51570

Opis proizvoda

- A small package with huge ambition - the wAP ac LTE6 kit is an upgrade of our extremely cost-effective dual-band (2.4 / 5 GHz) home access point based on the popular weatherproof wAP form factor
- Its new CAT6 LTE modem enables even greater download speed - up to 300 Mbps
- Cat.6 also enables carrier aggregation and allows the device to use multiple bands at the same time
- A huge advantage when there are a lot of LTE users in the area
- It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside

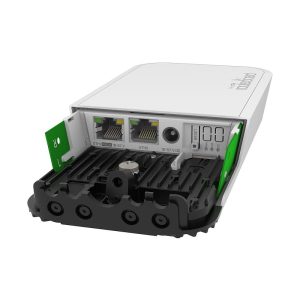

- wAP ac LTE6 kit has two Gigabit Ethernet ports - you can use the device as a wired router with LTE backup via the Micro SIM slot
- Alternatively, you can enjoy smooth wireless experience anywhere - indoors or outdoors
- wAP ac LTE is designed to deliver strong and reliable connection in almost any situation and weather conditions
- It can withstand temperatures from -30°C to +60°C and can be easily mounted on walls, ceilings or poles

Specifications
- Architecture: ARM 32bit
- CPU: IPQ-4018
- CPU core count: 4
- CPU nominal frequency: 716 MHz
- IPsec hardware acceleration: Yes
- RouterOS license: 4
- Size of RAM: 128 MB
- Storage size: 16 MB
- Storage type: FLASH
- MTBF: Approximately 200.000 hours at 25C
- Tested ambient temperature: -30°C to 60°C

POWERING
- PoE in: 802.3af/at
- PoE in input Voltage: 18-57 V
- Number of DC inputs: 2 (DC jack, PoE-IN)
- DC jack input Voltage: 10-57 V
- Max power consumption: 16 W
- Max power consumption without attachments: 10 W
- FAN count: Passive

MOBILE
- 2G Category: Class12
- 2G bands: 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
- 3G Category: R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
- 3G bands: 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
- LTE Category: 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
- LTE FDD bands: 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
- LTE TDD bands: 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)

WIRELESS
- Wireless 2.4 GHz Max data rate: 300 Mbit/s
- Wireless 2.4 GHz number of chains: 2
- Wireless 2.4 GHz standards: 802.11b/g/n
- Antenna gain dBi for 2.4 GHz: 2.5
- Wireless 2.4 GHz chip model: IPQ-4018
- Wireless 2.4 GHz generation: Wi-Fi 4
- Wireless 5 GHz Max data rate: 867 Mbit/s
- Wireless 5 GHz number of chains: 2
- Wireless 5 GHz standards: 802.11a/n/ac
- Antenna gain dBi for 5 GHz: 2.5
- Wireless 5 GHz chip model: IPQ-4018
- Wireless 5 GHz generation: Wi-Fi 5

ETHERNET
- 10/100/1000 Ethernet ports: 2

PERIPHERALS
- Number of SIM slots: 1 Modem (Micro SIM)
- MiniPCI-e slots: 1

OTHER
- PCB temperature monitor: Yes
- Voltage Monitor: Yes

CERTIFICATION & APPROVALS
- Certification: CE, FCC, IC, EAC, ROHS

INCLUDED PARTS
- Plastic zip tie
- Metal ring (one)
- K52 screw kit
- Gigabit PoE injector
- 24V 0.8A power adapter
- wAP desktop stand
- wAP mount bracket
