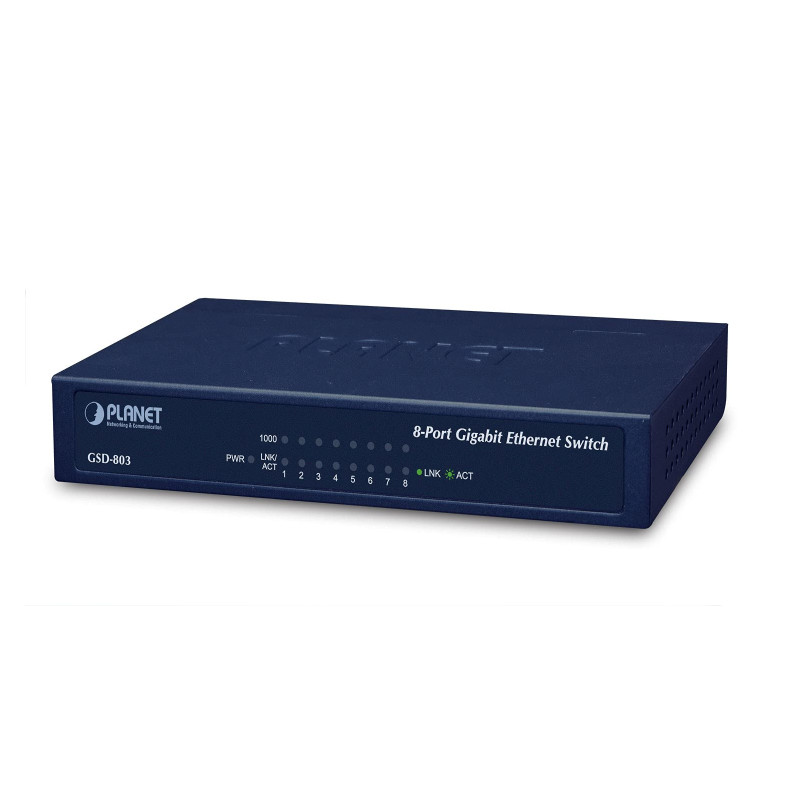

PLANET Gigabit preklopnik (Switch) 8-port 10/100/1000Mbps, metalno kućište
Opis proizvoda
- Dual Energy-Saving technology
* Link down power saving
* Intelligent scales power based on cable length
- Complies with IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX and IEEE 802.3ab, 1000Base-T
- IEEE 802.3x, full-duplex flow control compliant; back-pressure, half-duplex flow control
- 8-Port 10/100/1000Mbps Gigabit Ethernet ports
- Per port auto-MDI, MDI-X detection
- 8K MAC address table auto-ageing
- 9K Jumbo packet size support
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- Non-blocking, Store and Forward switching architecture
- Automatic source address learning and aging
- Power Saving ability for Green networking
- One power on/off button for energy saving
- Compact size, wall-mountable design
- Metal case, good for heat sinking
- Easy installation, ideal solution for fit in space-limited locations
Specifikacija
HARDWARE
- Hardware Version: 5
- Ports: 8 10/ 100/1000Base-T RJ-45 Auto-MDI/MDI-X ports
- Enclosure: Metal
- Power on/off button: EuP power switch
- Dimensions (W×D×H): 155×86×26 mm
- Weight: 370 g
- Power Requirements: External power adapter 5V DC, 1000mA
- Power Consumption / Dissipation (Full operation): ull Load: 5.4 watts / 16.74 BTU
SWITCH
- Switch Processing Scheme: Store-and-Forward
- Address Table: 8K entries
- Share data Buffer: 1Mbits
- Flow Control: Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
- Switch fabric: 16Gbps
- Throughput (packet per second): 11.9Mpps
- Jumbo packet size: 9K
STANDARD CONFORMANCE
- Standards Compliance:
* IEEE 802.3 (Ethernet)
* IEEE 802.3u (Fast Ethernet)
* IEEE 802.3ab (Gigabit Ethernet)
* IEEE 802.3x (Full Duplex Flow Control)
* IEEE 802.3az Energy Efficient Ethernet (EEE)
ENVIRONMENT
- Temperature:
* Operating: 0 - 50 degrees C
* Storage: -40 - 70 degrees C
- Humidity:
* Operating: 5-90%
* Storage: 5-90% (Non-condensing)
