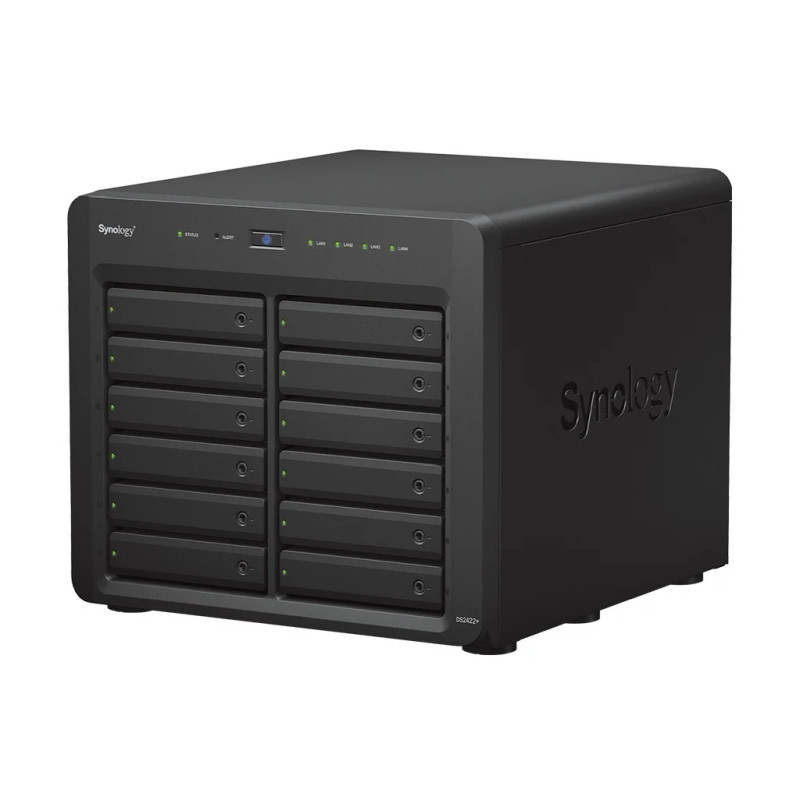

Synology DS2422+ DiskStation 12-bay NAS server, 2.5″/3.5″ HDD/SSD podrška, Hot Swappable HDD, Wake on LAN/WAN, Link Aggregation, 4GB DDR4, 4×G-LAN

Features
BUILT FOR HIGH-PERFORMANCE MASS STORAGE
- The 12-bay Synology DiskStation DS2422+ is a capable choice for small and medium businesses with large storage, file sharing, and data protection requirements in a multi-user environment
- It comes with powerful storage management, file syncing, surveillance, and backup software, and is suitable for editing high-quality video and as VM storage

FASTER PERFORMACNE
- Comfortably run demanding applications and processes with multiple users on the DS2422+ while still enjoying a smooth and fast experience

ACTIVE BACKUP SUITE
- Securely back up Windows clients and servers, Microsoft 365 and Google Workspace accounts, file servers, and VMware and Hyper-V virtual machines with the Active Backup Suite
- Leverage built-in deduplication technology to reduce backup sizes and multi-versioning to allow flexible restoration

IMPLEMENT A 3-2-1 BACKUP STRATEGY
- Combine local and remote backup strategies to achieve fully redundant protection of your IT infrastructure using Synology and third-party solutions

HYPER BACKUP
- Back up files, iSCSI LUNs, installed applications, and system configurations to destinations including Synology C2 Storage, public cloud platforms, USB devices, file servers, local folders, or other Synology NAS
- Set and forget backup tasks with regular schedules, enhance security with fine-grained user permissions and encryption, keep backup sizes small with built-in deduplication,4 and restore data flexibly with multi-versioning

SNAPSHOT REPLICATION
- Snapshot Replication enables flexible point-in-time snapshots of shared folders and virtual machines with an RPO as low as 5 minutes and recovery within seconds

READY FOR REMOTE WORK
- Empower your workforce to collaborate, share files, and communicate from anywhere

CERTIFIED VIRTUAL MACHINE STORAGE
- DSM streamlines provisioning for and management of virtual machines with full certification for VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack virtualization environments
- Synology Storage Console for VMware or Windows platforms lets you manage storage directly from your hypervisor
- VMware VAAI integration and Windows ODX help offload storage operations and speed up data transfer, and a Kubernetes CSI driver lets you provision and manage volumes directly from the K8s CLI

POWERED BY SYNOLOGY DISKSTATION MANAGER
- Data Protection: Keep your business safe from data loss and minimize service downtime
- User Management: Manage user accounts and devices throughout your business with powerful directory services
- Security: Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions
- File Management: Manage, sync, and share files from multiple devices through a centralized platform
- System Administration: Manage the health of your deployments and centrally administer updates with ease
- Surveillance: Protect your home or business with intelligent monitoring and video management tools

HARDWARE SPECIFICATIONS
CPU
- CPU Model: AMD Ryzen V1500B
- CPU Quantity: 1
-. CPU Architecture: 64-bit
- CPU Frequency: 4-core 2.2 GHz
- Hardware Encryption Engine (AES-NI): Yes

MEMORY
- System Memory: 4GB DDR4 ECC SODIMM
- Memory Module Pre-installed: 4GB (4GB ×1)
- Total Memory Slots: 2
- Maximum Memory Capacity: 32GB (16GB ×2)

STORAGE
- Drive Bays: 12
- Maximum Drive Bays with Expansion Unit: 24 (DX1222 ×1)
- Compatible Drive Type:
* 3.5" SATA HDD
* 2.5" SATA HDD
* 2.5" SATA SSD
- Maximum Single Volume Size: 108 TB
- Hot Swappable Drive: Yes

EXTERNAL PORTS
- RJ-45 1GbE LAN Port: 4 (with Link Aggregation / Failover support)
- USB 3.2 Gen 1 Port: 2
- Expansion Port: 1

PCIe
- PCIe Expansion: 1× Gen3 x8 slot (x4 link)

FILE SYSTEM
- Internal Drives: Btrfs, EXT4
- External Drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT

APPEARANCE
- Size (H×W×D): 270×300×340 mm
- Weight: 9.5 kg

OTHERS
- System Fan: 120×120 mm ×2 pcs
- Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode
- Easy Replacement System Fan: Yes
- Power Recovery: Yes
- Noise Level: 25 dB(A)
- Scheduled Power On / Off: Yes
- Wake on LAN / WAN: Yes
- Power Supply Unit / Adapter: 550 W
- AC Input Power Voltage: 100V to 240V AC
- Power Frequency: 50/60 Hz, Single Phase
- Power Consumption:
* 73.11 W (Access)
* 32.12 W (HDD Hibernation)
- British Thermal Unit:
* 249.63 BTU/hr (Access)
* 109.67 BTU/hr (HDD Hibernation)

TEMPERATURE
- Operating Temperature: 0C to 40C (32F to 104F)
- Storage Temperature: -20C to 60C (-5F to 140F)
- Relative Humidity: 5% to 95% RH

CERTIFICATION
- FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, UL

ENVIRONMET
- RoHS Compliant

PACKAGING CONTENT
1× Main Unit
1× Accessory Pack
1× AC Power Cord
2× RJ-45 LAN Cable
1× Quick Installation Guide

OPTIONAL ACCESSORIES
- DDR4 ECC SODIMM: D4ES02-4G/D4ES02-8G/D4ES01-16G
- Expansion Units: DX1222
- 3.5" SATA HDD: HAT5300
- 2.5" SATA SSD: SAT5200
- M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1
- M.2 SSD Adapter Card: M2D20
- 25GbE Network Interface Card: E25G21-F2
- 10GbE Network Interface Card: E10G21-F2/E10G18-T2/E10G18-T1
- VisualStation: VS360HD
- Surveillance Device License Pack

DSM Specifications
STORAGE MANAGEMENT
- Maximum Internal Volume Number: 64
- SSD Read / Write Cache (White Paper): Yes
- SSD TRIM: Yes
- Supported RAID Type: Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
- RAID Migration: Basic to RAID 1, Basic to RAID 5, RAID 1 to RAID 5, RAID 5 to RAID 6
- Volume Expansion with Larger HDDs: Synology Hybrid RAID, RAID 1, RAID 5, RAID 6, RAID 10
- Volume Expansion by Adding a HDD: Synology Hybrid RAID, JBOD, RAID 5, RAID 6
- Global Hot Spare Supported RAID Type: Synology Hybrid RAID, RAID 1, RAID 5, RAID 6, RAID 10

FILE SERVICES
- File Protocol: SMB/AFP/NFS/FTP/WebDAV
- Maximum Concurrent SMB/AFP/FTP Connections: 1000
- Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion): 2000
- Windows Access Control List (ACL) Integration: Yes
- NFS Kerberos Authentication: Yes

ACCOUNT & SHARED FOLDER
- Maximum Local User Accounts: 2048
- Maximum Local Groups: 256
- Maximum Shared Folder: 512
- Maximum Shared Folder Sync Tasks: 16

HYBRID SHARE
- Maximum Hybrid Share Folders: 4

HIGH AVAILABILITY
- Synology High Availability: Yes

LOG CENTER
- Syslog Events per Second: 1000

VIRTUALIZATION
- VMware vSphere with VAAI: Yes
- Windows Server 2016: Yes
- Windows Server 2019: Yes
- Citrix Ready: Yes
- OpenStack: Yes

GENERAL SPECIFICATIONS
- Networking Protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
- Supported Browsers: Google Chrome, Firefox, Microsoft Edge, Safari

Add-on Packages
- Antivirus by McAfee (Trial): Yes
- Central Management System: Yes
- Document Viewer: Yes

SYNOLOGY CHET
- Maximum Users: 1500ž

DOWNLOAD STATION
- Maximum Concurrent Download Tasks: 80

SAN MANAGER
- Maximum iSCSI Target Number: 128
- Maximum LUN: 256
- LUN Clone/Snapshot, Windows ODX: Yes

SYNOLOGY MAILPLUS / MAILPLUS SERVER
- Free Email Accounts: 5 (Licenses required for additional accounts)
- Maximum Number of Concurrent Users: 150
- Maximum Server Performance: 1.484.000 emails per day, approx. 45 GB
- Video Station: Yes

MEDIA SERVER
- DLNA Compliance: Yes

SYNOLOGY PHOTOS
- Facial Recognition: Yes

SNAPSHOT REPLICATION
- Maximum Snapshots per Shared Folder: 1.024
- Maximum of System Snapshots: 65.536

SURVEILLANCE STATION
- Maximum IP cam (Licenses required): 40 (including 2 Free License)
- Total FPS (H.264):
* 1200 FPS @ 720p (1280×720)
* 1050 FPS @ 1080p (1920×1080)
* 600 FPS @ 3M (2048×1536)
* 440 FPS @ 5M (2591×1944)
* 320 FPS @ 4K (3840×2160)
- Total FPS (H.265):
* 1200 FPS @ 720p (1280×720)
* 1200 FPS @ 1080p (1920×1080)
* 1120 FPS @ 3M (2048×1536)
* 600 FPS @ 5M (2591×1944)
* 480 FPS @ 4K (3840×2160)

SYNOLOGY DRIVE
- Recommended Number of Hosted Files: 50.000.000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
- Recommended Number of Concurrent Sync Clients: 550 (the number of connections that can be maintained when the recommended number of hosted files was reached)

SYNOLOGY OFFICE
- Maximum Users: 1.800

VIRTUAL MACHINE MANAGER
- Recommended Virtual Machine Instances: 8 (Learn more)
- Recommended Virtual DSM Number (Licenses required): 8 (including 1 Free License)

VPN SERVER
- Maximum Connections: 40
