TP-LINK

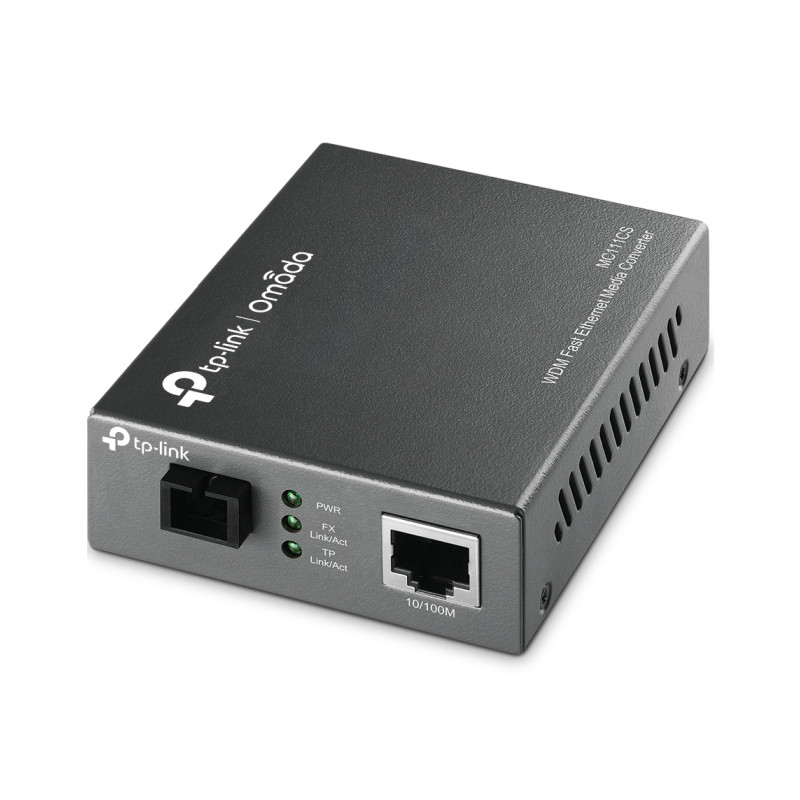

TP-Link 100M WDM optički pretvarač, 10/100M RJ45 u 100M Single-mode SC, Full-duplex,Tx:1550nm, Rx:1310nm, do 20km

34,46 €

Cijena uključuje PDV

Najniža cijena u zadnjih 30 dana: 34,46 €

Dostupno

Specifikacije

Standards and ProtocolsEEE 802.3, IEEE 802.3u, IEEE 802.3x

WDM TX1550nm

Wave Length1550nm Tx/1310nm Rx

WDM RX1310nm

Network Media 100BASE-FXSingle-mode Fiber

LED IndicatorsPWR, FDX/Col, Link/Act, SPD

Dimensions (W*D*H)3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

Power SupplyExternal Power Adapter

Safety & EmissionFCC, CE, RoHS

EnvironmentOperating Temperature:0?~40? (32?~104?)

Storage Temperature40?~70? (-40?~158?)

Operating Humidity10%~90% non-condensing

Storage Humidity5%~90% non-condensing

SKU: MC111CS

Opis proizvoda

- Standards and Protocols: EEE 802.3, IEEE 802.3u, IEEE 802.3x
- Basic Function:
* Adopts WDM technology
* Half/Full-Duplex transfer mode for FX port
* Full Duplex Flow Control (IEEE 802.3x)
* Half Duplex Flow Control (Backpressure)
* Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
* Extends fiber distance up to 20km
- Ports:
* 1× 100M SC port
* 1× 100M RJ45 port (Auto MDI/MDIX)
- WDM TX: 1550nm
- Wave Length: 1550nm Tx/1310nm Rx
- WDM RX: 1310nm
- Network Media 10BASE-T:
* UTP category 3, 4, 5 cable (maximum 100m)
* EIA/TIA-568 100? STP (maximum 100m)
- Network Media 100BASE-T:
* UTP category 5, 5e cable (maximum 100m)
* EIA/TIA-568 100? STP (maximum 100m)
- Network Media 100BASE-FX: Single-mode Fiber
- LED Indicators: PWR, FDX/Col, Link/Act, SPD
- Dimensions (W*D*H): 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
- Power Supply: External Power Adapter
- Safety & Emission: FCC, CE, RoHS
- Environment: Operating Temperature:0?~40? (32?~104?)
- Storage Temperature:-40?~70? (-40?~158?)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
