TP-Link 16-port Gigabit Easy Smart preklopnik (Switch), 16×10/100/1000M RJ45 ports, metalno kućište
Opis proizvoda
- Plug and play, with no configuration required
- Durable metal casing of superior quality and professional appearance
- Intelligent management via a web user interface and downloadable utility
- Green technology reduces power consumption
Specifications
HARDWARE FEATURES
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

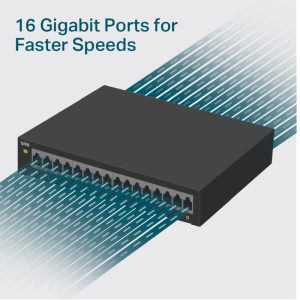

- Interface: 16 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
- Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
* EIA/TIA-568 100Ohm STP (maximum 100m)
* 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
* EIA/TIA-568 100Ohm STP (maximum 100m)
* 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
* EIA/TIA-568 100Ohm STP (maximum 100m)
- Fan Quantity: Fanless
- Power Supply: External Power Adapter(Output: 12VDC/1.0A)
- Dimensions (W×D×H): 286×111.7×25.4 mm
- Max Power Consumption: 9.19W (220V/50Hz)
- Max Heat Dissipation: 31.36BTU/h
PERFORMANCE
- Switching Capacity: 32Gbps
- Packet Forwarding Rate: 23.81Mpps
- MAC Address Table: 8K
- Packet Buffer Memory: 4.1Mb
- Jumbo Frame: 9KB
SOFTWARE FEATURES
- Quality of Service:
* Support Port-based/802.1p/DSCP priority
* Support 4 priority queues
* Rate Limit
* Storm Control
- L2 Features:
* IGMP Snooping V1/V2/V3
* Static Link Aggregation
* Port Mirroring
* Cable Diagnostics
* Loop Prevention
- VLAN:
* Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
* MTU/Port/Tag VLAN
- Transmission Method: Store-And-Forward
OTHERS
- Certification: FCC, CE, RoHS
- Package Contents: TL-SG116E, Power Cord, Installation Guide, Rubber Feet
- System Requirements: Microsoft Windows for running Utility
- Environment:
* Operating Temperature: 0C - 40C (32F - 104F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 90% non-condensing
