TP-Link 5-port Gigabit Easy Smart preklopnik (Switch), 5×10/100/1000M RJ45 ports, metalno kućište

TP-LINK

TP-Link 5-port Gigabit Easy Smart preklopnik (Switch), 5×10/100/1000M RJ45 ports, metalno kućište

24,52 €

Cijena uključuje PDV

Najniža cijena u zadnjih 30 dana: 24,52 €

Dostupno

Specifikacije

Standards and ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

10BASE-TUTP category 3, 4, 5 cable (max. 100m)

100BASE-TXUTP category 5, 5e cable (max. 100m)

1000BASE-TUTP category 5, 5e, 6 or above cable (max. 100m)

Fan QuantityFanless

Power SupplyExternal Power Adapter(Output: 9VDC/0.6A)

Dimensions (W×D×H)100×98×5 mm

Max Power Consumption2.66W (220V/50Hz)

Max Heat Dissipation9.07BTU/h

Packet Forwarding Rate7.4Mpps

MAC Address Table2K

Packet Buffer Memory1Mb

Jumbo Frame15KB

Transmission MethodStore-And-Forward

CertificationFCC, CE, RoHS

System RequirementsMicrosoft® Windows for running Utility

Operating Temperature0C - 40C (32F - 104F)

Storage Temperature40C - 70C (-40F - 158F)

Operating Humidity10% - 90% non-condensing

Storage Humidity5% - 90% non-condensing

SKU: TL-SG105E

Opis proizvoda

LINK YOUR DEVICES, CREATE CONVENIENT BUSINESS
- The TL-SG105E Desktop Switch provides you an easy way to increase the speed of your network server and backbone connections
- Whether you are at home or in the office, the TL-SG105E can always help you deal with your business quickly and easily

MORE FEATURES, MORE CHOICES
- Administrators can designate the priority of traffic based on QoS to ensure that voice and video applications remain clear and lag-free
- IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV

DURABLE METAL CASING
- The interior components of TL-SG105E are protected by high-quality metal casing to ensure a long product life
- Having passed an array of stringent reliability tests, TL-SG105E delivers switching performance you can depend on
- Its compact size makes it ideal for deployment on desktops or work benches

Features

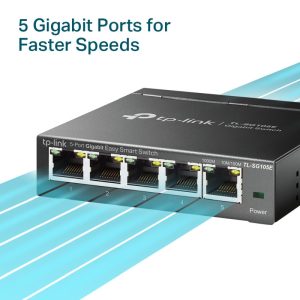

- 5× 10/100/1000Mbps RJ45 ports

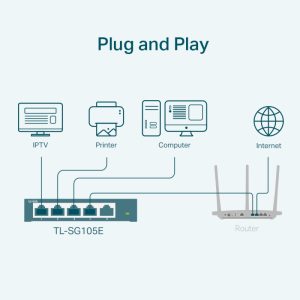

- Plug and play, with no configuration required

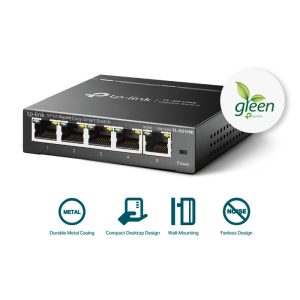

- Durable metal casing of superior quality and professional appearance
- Intelligent management via a web user interface and downloadable utility
- Green technology reduces power consumption

Specifications
HARDWARE FEATURES
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
- Interface:
* 5 10/100/1000Mbps RJ45 Ports
* AUTO Negotiation/AUTO MDI/MDIX
- Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (max. 100m)
** EIA/TIA-568 100Ohm STP (max. 100m)
* 100BASE-TX: UTP category 5, 5e cable (max. 100m)
** EIA/TIA-568 100Ohm STP (max. 100m)
* 1000BASE-T: UTP category 5, 5e, 6 or above cable (max. 100m)
** EIA/TIA-568 100Ohm STP (max. 100m)
- Fan Quantity: Fanless

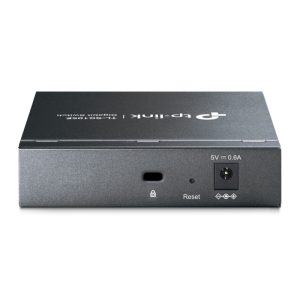

- Power Supply: External Power Adapter(Output: 9VDC/0.6A)
- Dimensions (W×D×H): 100×98×5 mm
- Max Power Consumption: 2.66W (220V/50Hz)
- Max Heat Dissipation: 9.07BTU/h

PERFORMANCE
- Packet Forwarding Rate: 7.4Mpps
- MAC Address Table: 2K
- Packet Buffer Memory: 1Mb
- Jumbo Frame: 15KB

SOFTWARE FEATURES
- Quality of Service:
* Support Port-based/802.1p/DSCP priority
* Support 4 priority queues
* Rate Limit
* Storm Control
- L2 Features:
* IGMP Snooping V1/V2/V3
* Static Link Aggregation
* Port Mirroring
* Cable Diagnostics
* Loop Prevention
- VLAN:
* Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
* MTU/Port/Tag VLAN
- Transmission Method: Store-And-Forward

OTHERS
- Certification: FCC, CE, RoHS
- Package Contents:
* TL-SG105E
* Power Adapter
* Installation Guide
* Rubber Feet
- System Requirements: Microsoft® Windows for running Utility
- Environment:
* Operating Temperature: 0C - 40C (32F - 104F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 90% non-condensing
