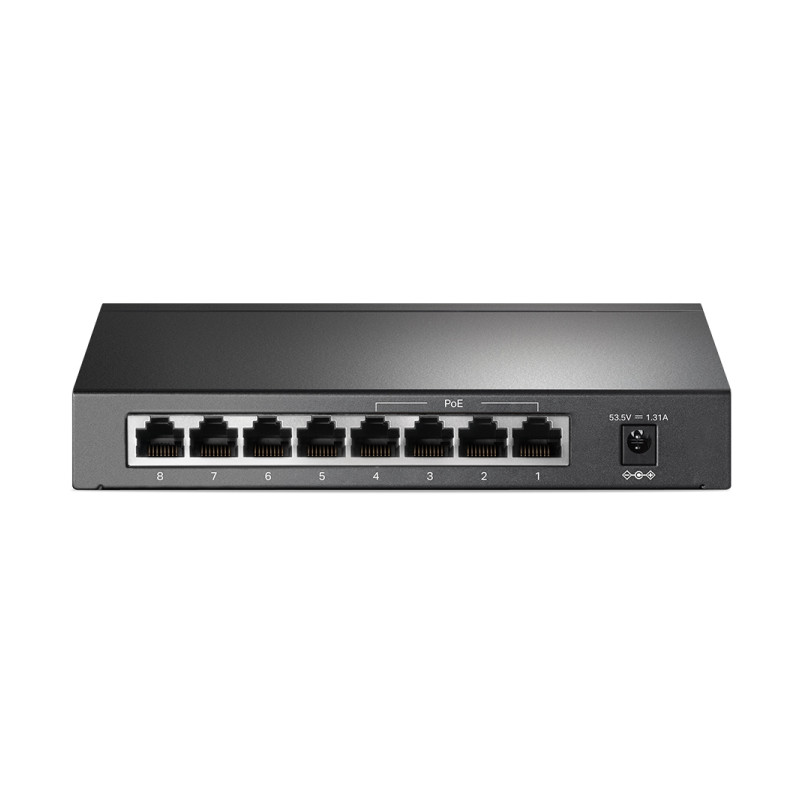

TP-Link 8-port Gigabit PoE preklopnik (Switch), 8×10/100/1000M RJ45 ports, 4×PoE ports, metalno kućište (53W)
Opis proizvoda

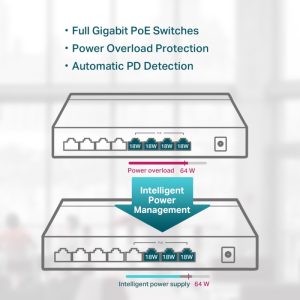

- Supports PoE power up to 53W for all PoE ports
- Supports PoE IEEE 802.3af compliant PDs
- Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
- 8K entry MAC address table of the TL-SG1008P with auto-learning and auto-aging
- LED indicators for monitoring power, link, activity and speed
- External power adapter supply
HARDWARE FEATURES
- Interface: 8× 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
- Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
* EIA/TIA-568 100ohm STP (maximum 100m)
* 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
* EIA/TIA-568 100ohm STP (maximum 100m)
* 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
* EIA/TIA-568 100ohm STP (maximum 100m)
- Fan Quantity: Fanless
- Dimensions (W×D×H): 171×98×27 mm
- Power Consumption:
* Maximum (PoE on): 63.0W (220V/50Hz)
* Maximum (PoE off): 3.3W (220V/50Hz)
- External Power Supply: External Power Adapter(Output: 48VDC / 1.25A)
- PoE Ports (RJ45):
* Standard: 802.3 af compliant
* PoE Ports: Port1- Port4
* Power Supply: 53W
- Backbound Bandwidth: 16Gbps
- Mac Address Table: 8K
- Buffer Size: 2Mbits
SOFTWARE FEATURES
- Transmission Method: Store-And-Forward
- Advanced Functions:
* Compatible With IEEE 802.3af Compliant PDs
* Priority Function
* Mac Address Auto-Learning And Auto-Aging
* IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
OTHERS
- Certification: FCC, CE, RoHS
- Consumption:
* 5.8 watts (max. no PD connected)
* 58.8 watts (max. with 53w PD connected)
- Environment:
* Operating Temperature: 0C - 40C (32F - 104F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 90% non-condensing
