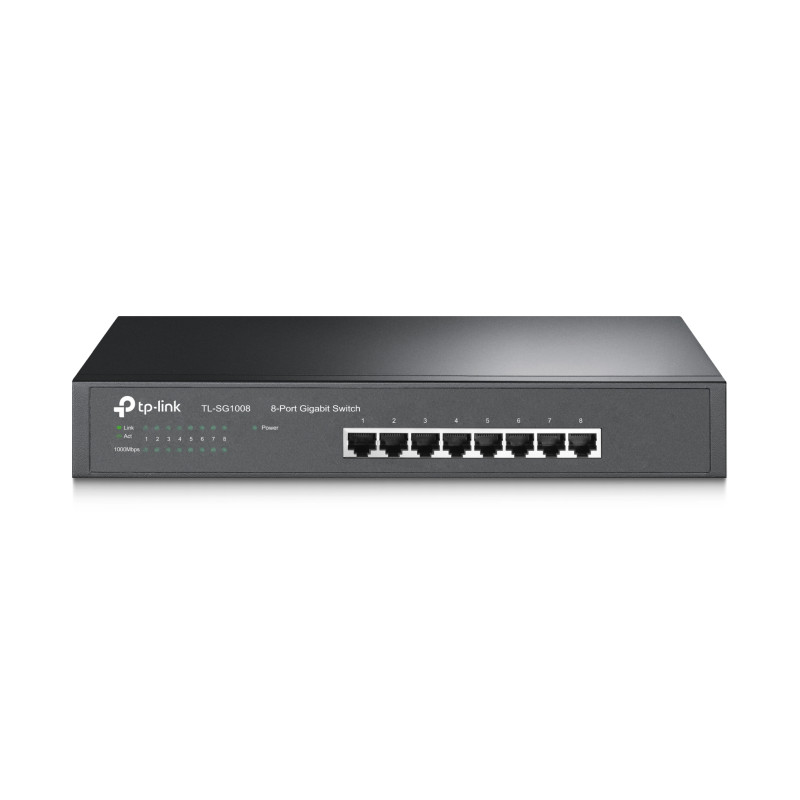

TP-Link 8-port Gigabit preklopnik (Switch), 8×10/100/1000M RJ45 ports, 1U 19″, Rack mount, metalno kućište
Opis proizvoda
- Supports full duplex wire-speed forwarding
- Head of line blocking prevention
- Full duplex Flow Control (802.3x compatible)
- Asymmetric Flow Control (802.3z compatible)
- Dynamic data buffer assignment
Specifications
- Standards and Protocols:
* IEEE802.3, 802.3u, 802.3ab, 802.3x
* CSMA/CD, TCP/IP
- Basic Function:
* Wire-speed Performance
* MAC Address Auto-Learning and Auto-aging
* IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
- Backbound Bandwidth: 16Gbps
- MAC Address Table: 8k
- Forwarding Rate:
* 10BASE-T: 14880pps/port
* 100BASE-TX: 148800pps/port
* 1000BASE-T: 1488000pps/port
- Transmission Method: Store-and-Forward
- Ports: 8× 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
- Network Media:
* 10Base-T: UTP category 3, 4, 5 cable (max. 100m)
* EIA/TIA-568 100 STP (max. 100m)
* 100Base-Tx: UTP category 5, 5e cable (max. 100m)
* EIA/TIA-568 100 STP (max. 100m)
* 1000Base-T: UTP category 5, 5e cable (max. 100m)
- LED Indicators: Power, Link/Act (1000Mbps, 10/100Mbps)
- Safety & Emission: FCC, CE
- Dimensions (W×D×H): 250×158×44 mm
- Environment:
* Operating Temperature: 0C - 40C (32F - 104F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 90% non-condensing
- Power: 100-240VAC, 50/60Hz
- Package Contents:
* 8-Port Gigabit Desktop Switch
* Power Cord
* Installation Guide
* Rackmount kit
* Rubber Feet
