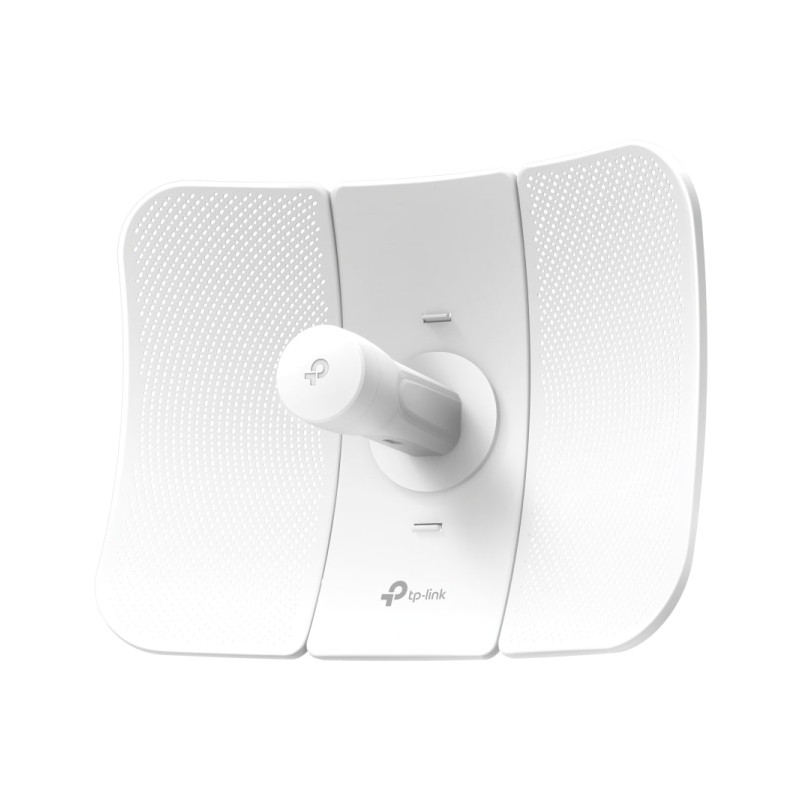

TP-Link bežična pristupna točka vanjska (AP) 150Mbps (5.0GHz), 802.11a/n, podrška za Pasive PoE, 1×LAN, IP65, Pharos MAXtream, 23dBi usmjeriva antena
Opis proizvoda
- 23dBi high-gain directional antenna and a dedicated metal reflector, ideal for long-distance application
- Excellent beam directivity, improved latency and noise cancellation
- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE605 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
- TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
Specifications
HARDWARE FEATURES
- Processor: Qualcomm 560MHz CPU, MIPS 74Kc
- Memory: 64MB DDR2 RAM,8MB Flash
- Interface:
* 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
* 1 Reset Button
- Power Supply:
* Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
* Voltage range: 16-27VDC
- Dimensions (W×D×H): 350×255×207 mm (13.8"×10.0"×8.1)
- Antenna Gain: 23dBi
- Antenna Beamwidth: 7° (Azimuth), 10° (Elevation)
- Protection:
* 15KV ESD Protection
* 6KV Lightning Protection
- Enclosure:
* Material: Outdoor PC stabilized plastic
* Weatherproof: IP65 water and dust proof design
WIRELESS FEATURES
- Wireless Standards: IEEE 802.11a/n
- Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)
- Wireless Speeds:
* Up to 150Mbps (40MHz,Dynamic)
* Up to 72.2Mbps (20MHz,Dynamic)
* Up to 36.1Mbps (10MHz,Dynamic)
* Up to 18.05Mbps (5MHz,Dynamic)
- Frequency: 5.15 - 5.85GHz
- Transmit Power: Max. 23dBm (Adjustable power by 1dBm)
SOFTWARE FEATURES
- IPv6: Yes
- Network Configuration:
* WAN: Static/Dynamic/PPPoE/L2TP/PPTP
* LAN: Static/Dynamic/DHCP
* Forwarding: ALG/UPnP/Virtual Server/Port Trigger
* Security: SPI Firewall/ Ping Forbidden/DoS Protection
* Access Control
* Static Routing
* Bandwidth Control
* IP & MAC Binding
- Wireless Configurations:
* Pharos MAXtream TDMA Technology
* Selectable Channel Width: 5/10/20/40MHz
* Auto Channel Selection
* Transmit Power Control
* Dynamic Frequency Selection(DFS)
* WDS Enable/Disable
* Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
* 64/128/152-bit WEP Encryption
* SSID Broadcast Enable/Disable
* Multi-SSID with VLAN Tagging(AP Mode only)
* Distance/ACK Timeout Setting
* Wireless MAC Address Filter
* Wireless Advanced:
* Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
* Long Range PtP
- Management:
* Discovery and Remote Management via Pharos Control application
* HTTP/HTTPS Web-based management
* System log
* SNMP Agent(v2c)
* Ping Watch Dog
* Dynamic DDNS
* SSH Server
- System Tools:
* Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory
* Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
* Spectrum Analyzer
* Speed Test
* Ping
* Traceroute
* Antenna Alignment
- System-level Optimizations: Optimized IGMP Snooping/Proxy for multicast applications
OTHERS
- Certification: CE, FCC, RoHS, IP65
- Package Contents: Outdoor Wireless CPE, 24V 0.25A Passive PoE Adapter, Pole Mounting Kits, AC Power Cord, Installation Guide
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux
* Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended
- Environment:
* Operating Temperature: -40C - 70C (-40F - 158F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 95% non-condensing
