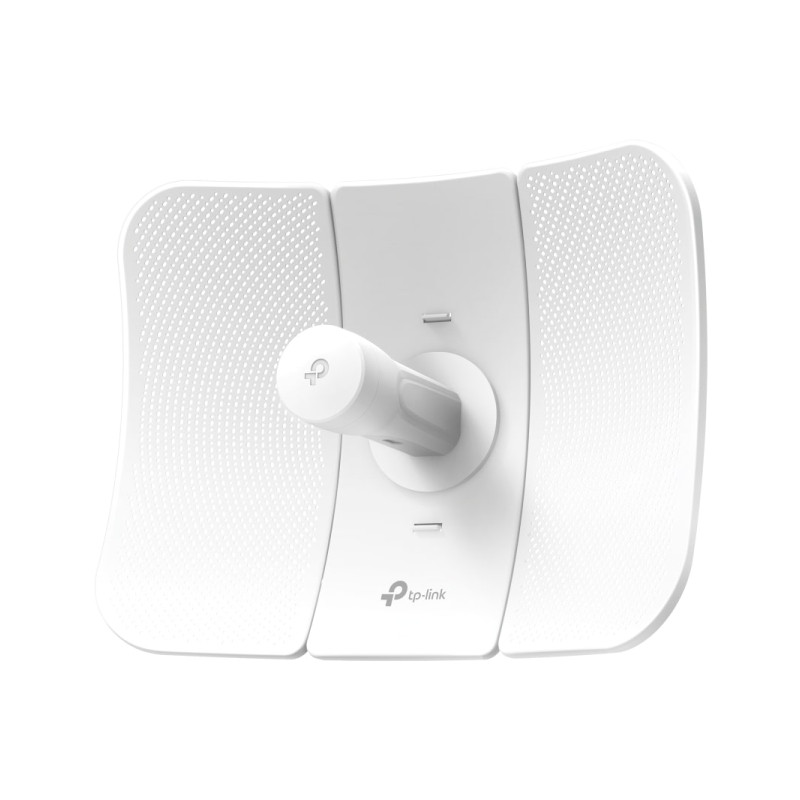

TP-Link bežična pristupna točka vanjska (AP) 300Mbps (5.0GHz), 802.11a/n, podrška za Pasive PoE, 1×LAN, IP65, Pharos MAXtream, 29dBi usmjeriva antena

Specifications
HARDWARE FEATURES
- Processor: Qualcomm 560MHz CPU, MIPS 74Kc
- Memory: 64MB DDR2 RAM,8MB Flash
- Interface:
* 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
* 1 Reset Button
- Power Supply:
* Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
* Voltage range: 16-27VDC
- Dimensions (W×D×H): 366×280×207 mm (14.4"×11.0"×8.1")
- Antenna Gain: 23dBi
- Antenna Beamwidth: 9° (Azimuth), 7° (Elevation)
- Protection:
* 15KV ESD Protection
* 6KV Lightning Protection
- Enclosure:
* Material: Outdoor PC stabilized plastic
* Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES
- Wireless Standards: IEEE 802.11a/n
- Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)
- Wireless Speeds:
* Up to 300Mbps (40MHz,Dynamic)
* Up to 144.4Mbps (20MHz,Dynamic)
* Up to 72.2Mbps (10MHz,Dynamic)
* Up to 36.1Mbps (5MHz,Dynamic)
- Frequency: 5.15 - 5.85GHz
- Transmit Power: Max. 25dBm (Adjustable power by 1dBm)

SOFTWARE FEATURES
- Network Configuration:
* WAN: Static/Dynamic/PPPoE/L2TP/PPTP
* LAN: Static/Dynamic/DHCP
* Forwarding: ALG/UPnP/Virtual Server/Port Trigger
* Security: SPI Firewall/ Ping Forbidden/DoS Protection
* Access Control
* Static Routing
* Bandwidth Control
* IP & MAC Binding
- Wireless Configurations:
* Pharos MAXtream TDMA Technology
* Selectable Channel Width: 5/10/20/40MHz
* Auto Channel Selection
* Transmit Power Control
* Dynamic Frequency Selection(DFS)
* WDS Enable/Disable
* Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
* 64/128/152-bit WEP Encryption
* SSID Broadcast Enable/Disable
* Multi-SSID with VLAN Tagging(AP Mode only)
* Distance/ACK Timeout Setting
* Wireless MAC Address Filter
* Wireless Advanced:
* Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
- Management:
* Discovery and Remote Management via Pharos Control application
* HTTP/HTTPS Web-based management
* System log
* SNMP Agent(v2c)
* Ping Watch Dog
* Dynamic DDNS
* SSH Server
- System Tools:
* Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory
* Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
* Spectrum Analyzer
* Speed Test
* Ping
* Traceroute
- System-level Optimizations:
* Optimized IGMP Snooping/Proxy for multicast applications
* Hardware watch dog

POE ADAPTER FEATURES
- Dimensions (W×D×H): 85.8×43.9×29.7 mm
- Interfaces:
* 1 AC Jack with Earth Ground
* 1 10/100Mbps Shielded Ethernet Port (Power + Data)
* 1 10/100Mbps Shielded Ethernet Port (Data)
- Button: Remote Reset Button
- Power Status LEDs: Green
- Input: 100-240VAC, 50/60Hz
- Output:
* 24VDC, 0.6A Max
* +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
- Efficiency: >84.29%
- Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

OTHERS
- Certification: CE, FCC, IC, RoHS, IP65
- Package Contents: Outdoor Wireless CPE, 24V 0.5A Passive PoE Adapter, Pole Mounting Straps, AC Power Cord, Installation Guide
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux
* Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended
- Environment:
* Operating Temperature: -40C - 70C (-40F - 158F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 95% non-condensing
