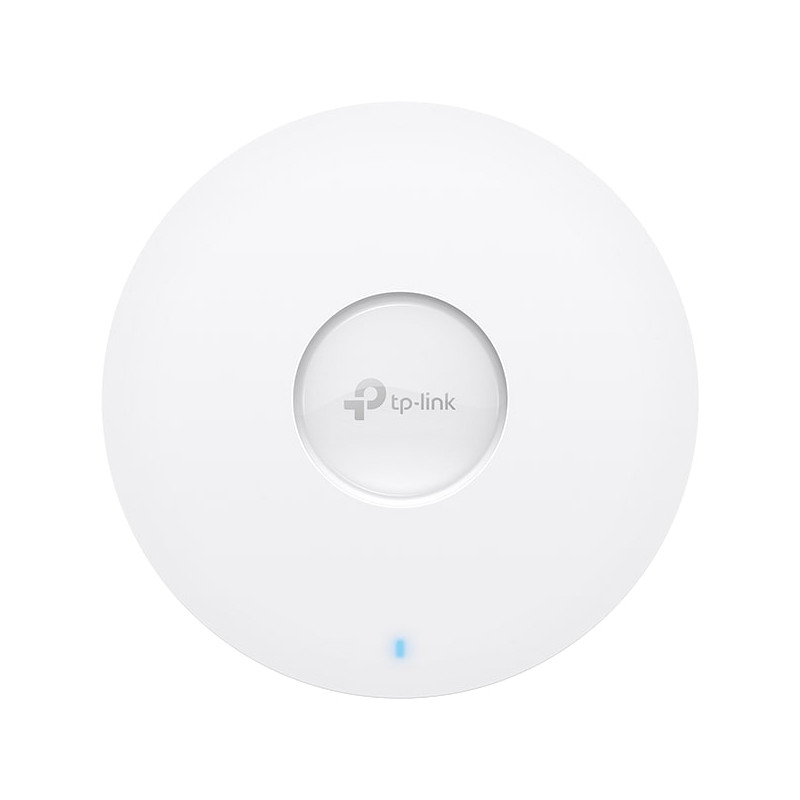

TP-Link Omada AX1800 bežična pristupna točka stropna Dual-Band Wi-Fi 6 (AP), 574Mbps/1201Mbps (2.4GHz/5GHz), 802.11ax/ac/n/g/b/a, 1×G-LAN, podrška za PoE, 4×interna antena

TP-LINK

TP-Link Omada AX1800 bežična pristupna točka stropna Dual-Band Wi-Fi 6 (AP), 574Mbps/1201Mbps (2.4GHz/5GHz), 802.11ax/ac/n/g/b/a, 1×G-LAN, podrška za PoE, 4×interna antena

149,13 €

Cijena uključuje PDV

Najniža cijena u zadnjih 30 dana: 149,13 €

Dostupno

Specifikacije

Ultra-Fast WiFi 6 SpeedsSimultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds

High-Efficiency WiFi 6More connected devices can enjoy faster speeds

Centralized Cloud ManagementManage the whole network locally or from the cloud via web UI or Omada app

Seamless RoamingEven video streams and voice calls are unaffected as users move between locations

Omada MeshEnables wireless connectivity between access points for extended range and flexible deployment

PoE+ PoweredSupports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations

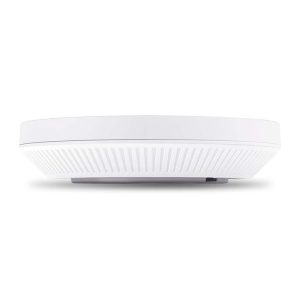

Ultra-Slim Design?160 mm × 33.6 mm elegant design brings more agility

Secure Guest NetworkAlong with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies

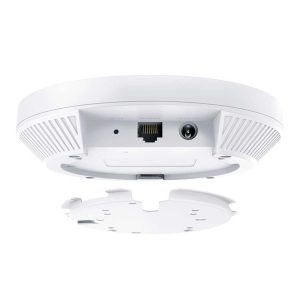

Interface1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE)

ButtonReset

Power Consumption13.7 W (For PoE); 12.3 W (for DC)

Dimensions (W×D×H)160×160×33.6 mm

Antenna TypeInternal Omni Antenna

2.4 GHzUp to 574 Mbps

5 GHzUp to 1201 Mbps

MountingCeiling /Wall Mounting (Kits included), Junction Box Mounting

Wireless StandardsIEEE 802.11ax/ac/n/g/b/a

Frequency2.4 GHz and 5 GHz

SKU: EAP610

Opis proizvoda

- Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds
- Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment
- PoE+ Powered: Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations
- Ultra-Slim Design: ?160 mm × 33.6 mm elegant design brings more agility
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies

Specifications
HARDWARE FEATURES
- Interface: 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE)
- Button: Reset
- Power Supply:
* 802.3at PoE
* 48 V Passive PoE
* 12 V / 1.5 A DC
- Power Consumption: 13.7 W (For PoE); 12.3 W (for DC)
- Dimensions (W×D×H): 160×160×33.6 mm
- Antenna Type: Internal Omni Antenna
* 2.4 GHz: 2× 4 dBi
* 5 GHz: 2× 5 dBi
- Mounting: Ceiling /Wall Mounting (Kits included), Junction Box Mounting

WIRELESS FEATURES
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate:
* 5 GHz: Up to 1201 Mbps
* 2.4 GHz: Up to 574 Mbps
- Wireless Functions:
* 1024-QAM
* 4× Longer OFDM Symbol
* OFDMA
* Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
* Enable/Disable Wireless Radio
* Automatic Channel Assignment
* Transmit Power Control (Adjust Transmit Power on dBm)
* QoS(WMM)
* MU-MIMO
* Seamless Roaming
* Omada Mesh
* Band Steering
* Load Balance
* Airtime Fairness
* Beamforming
* Rate Limit
* Reboot Schedule
* Wireless Schedule
* Wireless Statistics based on SSID/AP/Client
- Wireless Security:
* Captive Portal Authentication
* Access Control
* Wireless Mac Address Filtering
* Wireless Isolation Between Clients
* SSID to VLAN Mapping
* Rogue AP Detection
* 802.1X Support
* WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power:
* CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3)
* FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz) MANAGEMENT
- Omada App: Yes

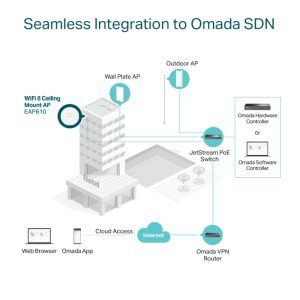

- Centralized Management:
* Omada Cloud-Based Controller
* Omada Hardware Controller (OC300)
* Omada Hardware Controller (OC200)
* Omada Software Controller
- Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging Local/Remote Syslog: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes

OTHERS
- Certification: CE, FCC, RoHS
- Package Contents: EAP610, Power Adapter, Ceiling/ Wall Mounting Kits, Installation Guide
- System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
- Environment:
* Operating Temperature: 0C to 40C (32F to 104F)
* Storage Temperature: -40C to 70C (-40F to 158F)
* Operating Humidity: 10% - 90% RH non-condensing
* Storage Humidity: 5% - 90% RH non-condensing
