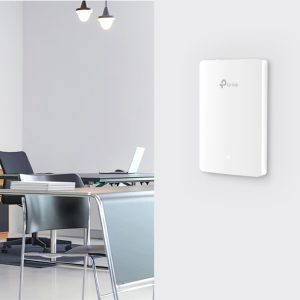

TP-Link Omada AX1800 bežična pristupna točka zidna/stropna Dual-Band Wi-Fi 6 (AP) 574Mbps/1201Mbps (2.4GHz/5GHz), 802.11ax/ac/n/g/b/a, 4×G-LAN, podrška za PoE, 2×interna antena
Opis proizvoda
- High-Performance Connectivity: Guarantee higher network efficiency and lower latency
- Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device
- Centralized Management: Integrates into Omada SDN for cloud access and remote management
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support
Specifications
HARDWARE FEATURES
- Interface:
* Uplink: 1× 10/100/1000 Mbps Ethernet Port
* Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT - The PoE OUT feature requires 802.3at PoE+ input - The maximum power output for POE pass-through is 13 W, based on laboratory testing)
- Physical Security Lock: Yes
- Button: Reset
- Power Supply: 802.3af/at PoE
- Power Consumption: 10W (802.3at PoE, PoE Out off)
- Dimensions: 143×86×20 mm
- Antenna: 2 Dual-Band Antennas
* 2.4 GHz: 2× 3 dBi
* 5 GHz: 2× 4 dBi
- Mounting: Wall Plate Mounting
WIRELESS FEATURES
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate:
* 5 GHz: Up to 1201 Mbps
* 2.4 GHz: Up to 574 Mbps
- Wireless Functions:
* 16 SSIDs (Up to 8 SSIDs on each band)
* Enable/Disable Wireless Radio
* Automatic Channel Assignment
* Transmit Power Control (Adjust Transmit Power on dBm)
* QoS(WMM)
* Seamless Roaming†
* Beamforming
* MU-MIMO
* Rate Limit
* Load Balance
* Airtime Fairness
* Band Steering
* Reboot Schedule
* Wireless Schedule
* RADIUS Accounting
* MAC Authentication
* Wireless Statistics
* Static IP/Dynamic IP
- Wireless Security:
* Captive Portal Authentication
* Access Control
* Wireless Mac Address Filtering
* Wireless Isolation Between Clients
* VLAN
* Rogue AP Detection
* 802.1X Support
* WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power:
* CE:
< 20 dBm (2.4 GHz, EIRP)
< 23 dBm (5 GHz, EIRP)
* FCC:
< 21 dBm (2.4 GHz)
< 21 dBm (5 GHz)
MANAGEMENT
- Omada App: Yes
- Centralized Management:
* Omada Hardware Controller (OC300)
* Omada Hardware Controller (OC200)
* Omada Software Controller
- Cloud Access: Yes (Through OC300, OC200, or Omada Software Controller)
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging Local/Remote Syslog: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
OTHERS
- Certification: CE, FCC, RoHS
- Package Contents: AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall, Installation Guide, Mounting Kits
- System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
- Environment:
* Operating Temperature: 0C to 40C (32F to 104F)
* Storage Temperature: -40C to 70C (-40F to 158F)
* Operating Humidity: 10% - 90% RH non-condensing
* Storage Humidity: 5% - 90% RH non-condensing
