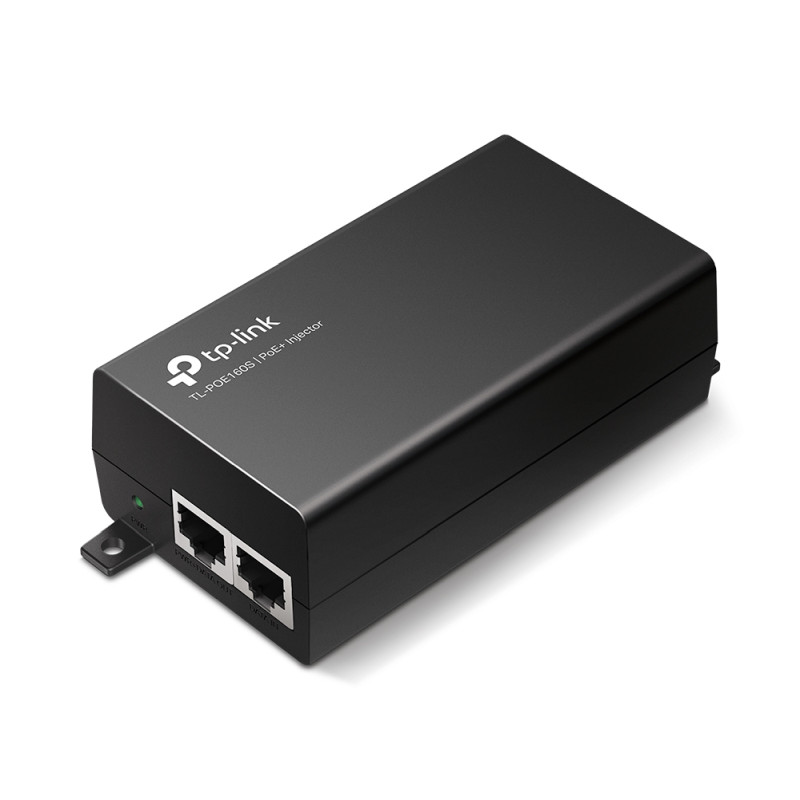

TP-Link PoE+ Injector Adapter, 1×Gbit PoE Port, 1×Gbit Non-PoE Port, 802.3at/af, Data+Power po istom kablu, do 100m, plastično kućište

TP-LINK

TP-Link PoE+ Injector Adapter, 1×Gbit PoE Port, 1×Gbit Non-PoE Port, 802.3at/af, Data+Power po istom kablu, do 100m, plastično kućište

26,67 €

Cijena uključuje PDV

Najniža cijena u zadnjih 30 dana: 26,54 €

Dostupno

Specifikacije

Standards and ProtocolsIEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at

CertificationFCC, CE, RoHS

Operating Temperature0°C to 40°C (32°F to 104°F)

Storage Temperature40°C to 70°C (-40°F to 158°F)

Operating Humidity10% to 90%RH non-condensing

Storage Humidity5% to 90%RH non-condensing

10BASE-TUTP category 3, 4, 5 cable (maximum 100 m)

100BASE-TXUTP category 5, 5e cable (maximum 100 m)

1000BASE-TUTP category 5, 5e, 6 cable(maximum 100 m)

Input100-240 V, 50/60 Hz

OutputAuto-determine the necessary power requirements (max. 30 W)

ONSupplying power normally

OFFNo power supply

Dimensions (W×D×H)125×59.4×36.8 mm

SKU: PoE160S

Opis proizvoda

WHAT THIS PRODUCT DOES

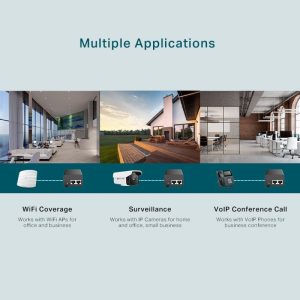

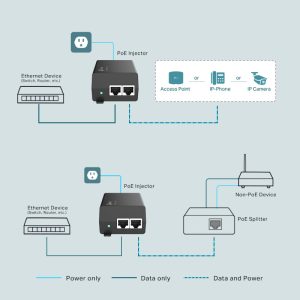

- The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc

Features
- 2 Gigabit ports ensure faster transmission
- Complies with IEEE802.3af/at standards, supplies up to 30 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable

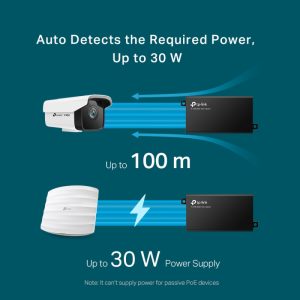

- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, requires no configuration
- Integrated power supply

Specifications
NETWORK
- Standards and Protocols: IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at

GENERAL
- Certification: FCC, CE, RoHS
- Environment:
* Operating Temperature: 0°C to 40°C (32°F to 104°F)
* Storage Temperature: -40°C to 70°C (-40°F to 158°F)
* Operating Humidity: 10% to 90%RH non-condensing
* Storage Humidity: 5% to 90%RH non-condensing

HARDWARE FEATURES
- Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
* EIA/TIA-568 100Ohm STP (maximum 100 m)
* 100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
* EIA/TIA-568 100Ohm STP (maximum 100 m)
* 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

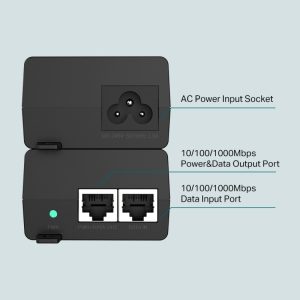

- Ports:
* 1× 10/100/1000Mbps RJ45 data-in port
* 1× 10/100/1000Mbps RJ45 power+data-out port
* 1× AC socket
- Power Consumption:
* Input: 100-240 V, 50/60 Hz
* Output: Auto-determine the necessary power requirements (max. 30 W)
- Basic Function:
* Auto-Sensing Algorithm enables providing power with 802.3af/at PD
* Auto-determine the necessary power requirements
* Wall-mounting and desktop installation supported
* Plug-and-Play
- LED Indicator:
* ON: Supplying power normally
* OFF: No power supply
- Dimensions (W×D×H): 125×59.4×36.8 mm
