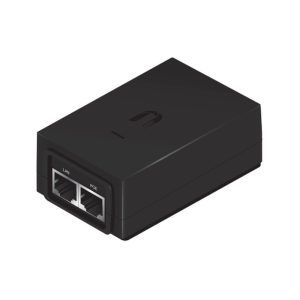

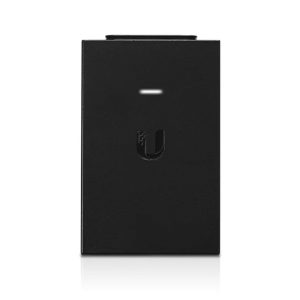

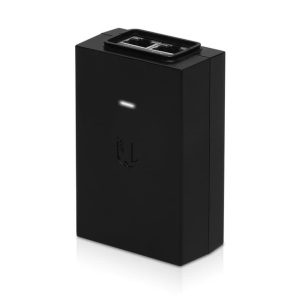

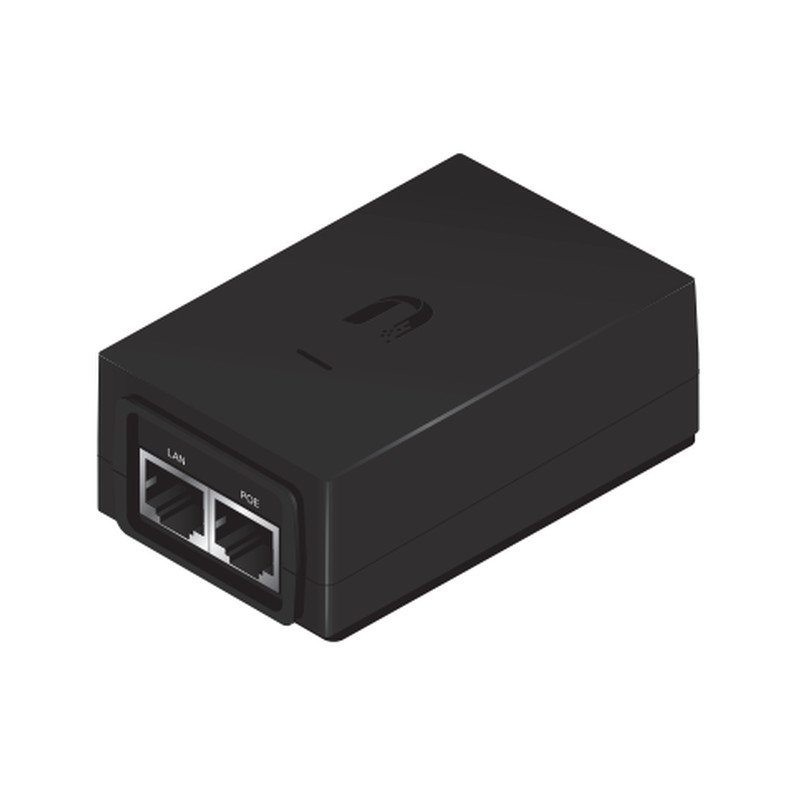

Ubiquiti PoE adapter 24-24W
Opis proizvoda
* Surge protection
* Clamping protection
* Maximum surge discharge
* Peak pulse current
* AC cable with earth ground
- Electrostatic discharge (ESD) is the leading cause for outdoor device failures
- You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors
Specifications
- Output Voltage: 24V DC 1.0A
- LAN Activity Indicator: No
- Gigabit LAN Port: No
- Remote Reset Capability: Yes
- Reset Button: Yes
- Rated Voltage: 100-240V AC 50/60Hz
- Input Current: 0.6A 120V AC, 0.4A 240V AC
- Inrush Current: <60A Peak 120V AC, <120A Peak 230V AC
- Efficiency: 80+%
- Output Ripple: 1% Max.
- Switching Frequency: 65 kHz
- Line Regulation: < 3%
- Load Regulation: < 5%
- 2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-)
- Operating Temperature: 0C to 40C (32F to 104F)
- Storage Temperature: -30C to 70C (-22F to 158F)
- Operating Humidity: 35 to 95% Noncondensing
- AC Connector: IEC-320 C6
- Data IN / POE: RJ45 Shielded Socket
- Surge Protection: Difference and Common Mode
- Clamping Protection: 11V Data, 60V Power
- Max. Surge Discharge: 1500A (8/20 µs) Power
- Peak Pulse Current: 36A (10/1000 µs) Data
- Shunt Capacitance: <5 pF data
- Response Time: <1 ns
- Certifications: CE, FCC, IC, UL
