UBIQUITI

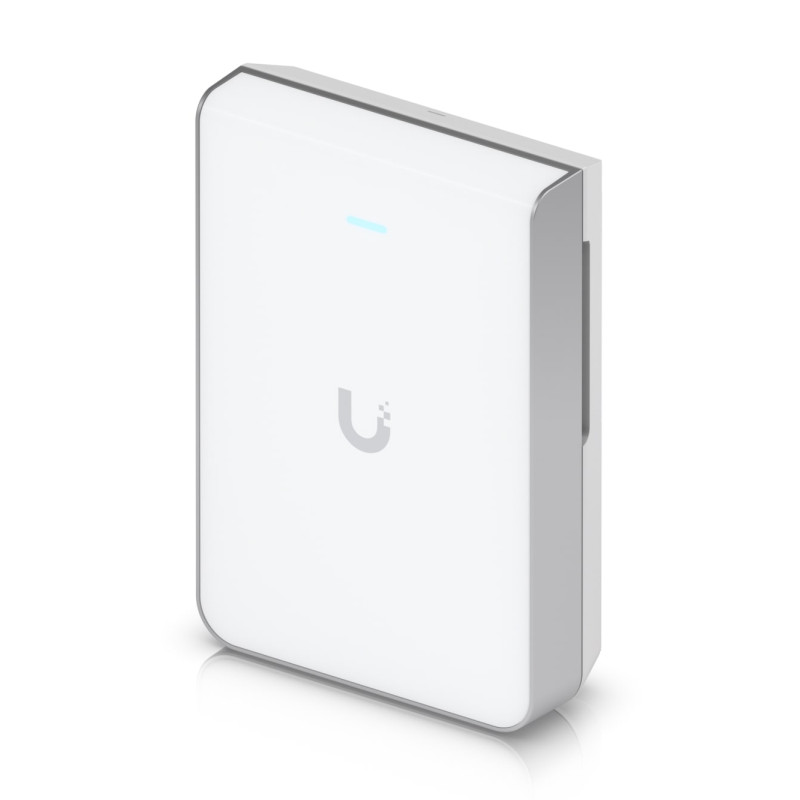

Ubiquiti U7-Pro-Wall pristupna točka

314,61 €

Cijena uključuje PDV

Najniža cijena u zadnjih 30 dana: 314,61 €

Dostupno

Specifikacije

Dimensions150 x 103 x 36 mm (5.9 x 4.1 x 1.4")

Weight580 g (1.3 lb)

Enclosure materialPolycarbonate, aluminum

Mount materialAluminum

Networking interface(1) 1/2.5 GbE RJ45 port

Management interfaceEthernet

Power methodPoE+

Power supplyUniFi PoE switch

Supported voltage range44—57V DC

Max. power consumption22W

2.4 GHz4 dBi

5 GHz5 dBi

6 GHz6 dBi

LEDsWhite/blue

ButtonFactory reset

Ambient operating temperature30 to 60° C (-22 to 140° F)

Ambient operating humidity5 to 95% noncondensing

CertificationsCE, FCC, IC

WiFi standards802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Wireless securityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

BSSID8 per radio

VLAN802.1Q

Advanced QoSPer-user rate limiting

Guest traffic isolationSupported

Concurrent clients300+

802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b1, 2, 5.5, 11 Mbps

802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6/6E)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11be (WiFi 7)7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

UniFi NetworkVersion 8.1 and later

UniFi OSVersion 3.2 and later

SKU: 66284

Opis proizvoda

Specifications
Mechanical
- Dimensions: 150 x 103 x 36 mm (5.9 x 4.1 x 1.4")
- Weight: 580 g (1.3 lb)
- Enclosure material: Polycarbonate, aluminum
- Mount material: Aluminum

Hardware
- Networking interface: (1) 1/2.5 GbE RJ45 port
- Management interface: Ethernet
- Power method: PoE+
- Power supply: UniFi PoE switch
- Supported voltage range: 44—57V DC
- Max. power consumption: 22W

Max. TX power
- 2.4 GHz: 22 dBm
- 5 GHz: 26 dBm
- 6 GHz: 23 dBm

MIMO
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- 5 GHz: 2 x 2 (DL/UL MU-MIMO)
- 6 GHz: 2 x 2 (DL/UL MU-MIMO)

Max. data rate
- 2.4 GHz: 688 Mbps (BW40)
- 5 GHz: 4.3 Gbps (BW240)
- 6 GHz: 5.7 Gbps (BW320)

Antenna gain
- 2.4 GHz: 4 dBi
- 5 GHz: 5 dBi
- 6 GHz: 6 dBi

- LEDs: White/blue
- Button: Factory reset
- Mounting
• Wall (Included)
• Table stand, flush mount (Optional)
- Ambient operating temperature: -30 to 60° C (-22 to 140° F)
- Ambient operating humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC

Software
- WiFi standards: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
- Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
- BSSID: 8 per radio
- VLAN: 802.1Q
- Advanced QoS: Per-user rate limiting
- Guest traffic isolation: Supported
- Concurrent clients: 300+

Supported Data Rates
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- 802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Application Requirements
- UniFi Network: Version 8.1 and later
- UniFi OS: Version 3.2 and later
