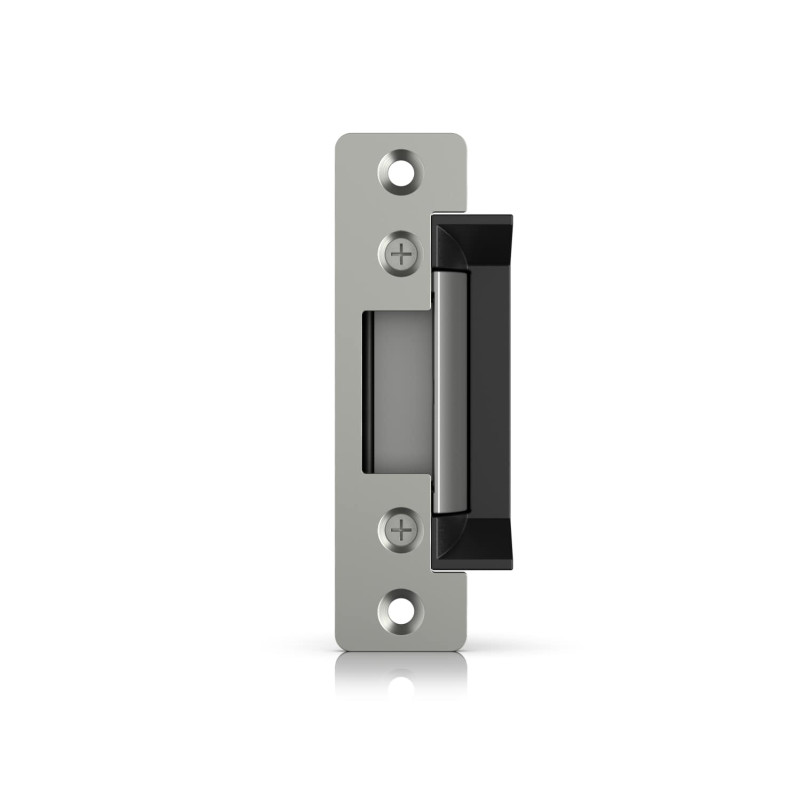

Ubiquiti UA-Lock-Electric 12V DC

52,80 €

Cijena uključuje PDV

Najniža cijena u zadnjih 30 dana: 52,80 €

Dostupno

Specifikacije

CompatibilityUA-G2-SK-Pro, UA-G2-SK, EAH-8, UA-Hub

DimensionsLock body: 80 x 40 x 35 mm (3.2 x 1.6 x 1.4")

Short front plate50 g (1.8 oz)

Long front plate130 g (4.6 oz)

Lock bodyzinc alloy

Front plate/latchesstainless steel

Voltage12V DC

Current power400mA ±10%

Wiring connectionConnect the two screw terminal separately to powered lock relay on UA-Hub: NO, COM

Lock holding force1,200 kg (2,645 lb)

SuitabilityWooden, steel, aluminum door

Screw terminal+ and

Ambient operating temperature10 to 45° C (14 to 113° F)

Ambient operating humidity5 to 90% noncondensing

CertificationsFCC, IC, CE

SKU: 66950

Opis proizvoda

- Fail-secure electric strike lock that connects to a UniFi Access Hub.

Features
- Holds up to 1,200 kg (2,645 lb)
- Can be installed on an aluminum, steel, or wooden door frame
- ANSI-compliant design
- Compatibility: UA-G2-SK-Pro, UA-G2-SK, EAH-8, UA-Hub

Specifications
Mechanical
- Dimensions: Lock body: 80 x 40 x 35 mm (3.2 x 1.6 x 1.4")
- Short front plate: 124 x 32 x 3 mm (4.9 x 1.3 x 0.1")
- Long front plate: 202 x 36 x 3 mm (7.9 x 1.4 x 0.1")

Weight
- Lock body: 185 g (6.5 oz)
- Short front plate: 50 g (1.8 oz)
- Long front plate: 130 g (4.6 oz)

Enclosure material
- Lock body: zinc alloy
- Front plate/latches: stainless steel

Hardware
- Voltage: 12V DC
- Current power: 400mA ±10%
- Wiring connection: Connect the two screw terminal separately to powered lock relay on UA-Hub: NO, COM
- Lock type
• Fail secure lock
• Single door
- Lock holding force: 1,200 kg (2,645 lb)
- Suitability: Wooden, steel, aluminum door
- Screw terminal: + and -
- Ambient operating temperature: -10 to 45° C (14 to 113° F)
- Ambient operating humidity: 5 to 90% noncondensing
- Certifications: FCC, IC, CE
