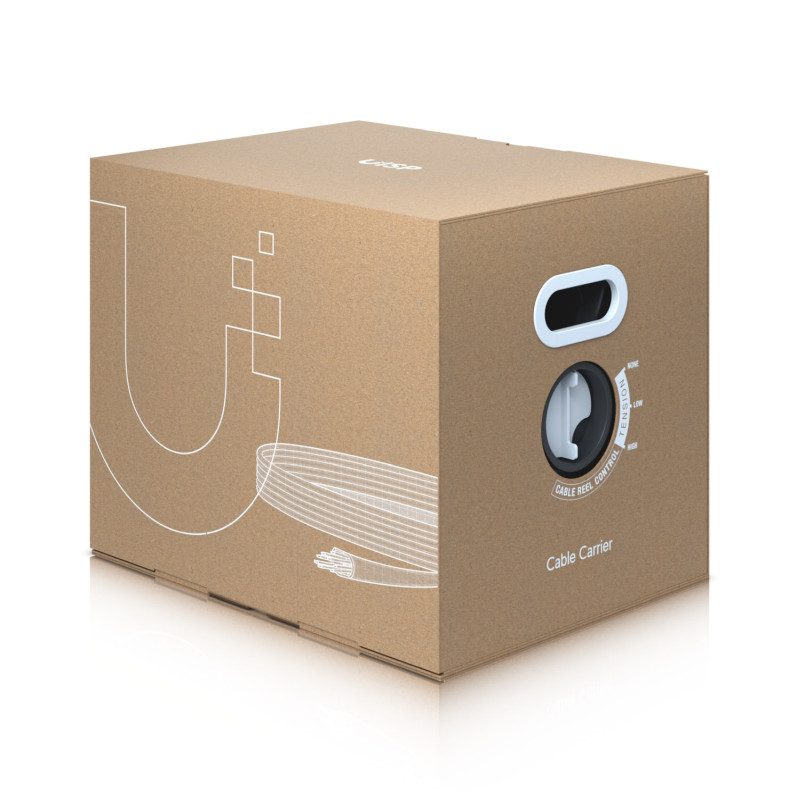

Ubiquiti UISP-Cable-Carrier (TC-Carrier), outdoor SFTP cable, Cat5e, 305m, AWG24, Copper, 1000 Base-T, 200 MHz

UBIQUITI

Ubiquiti UISP-Cable-Carrier (TC-Carrier), outdoor SFTP cable, Cat5e, 305m, AWG24, Copper, 1000 Base-T, 200 MHz

257,53 €

Cijena uključuje PDV

Sidrena cijena (2026-09-10): 257,53 €

Dostupno

Specifikacije

Box dimensions330 x 425 x 340 mm (13 x 16.7 x 13.4")

Box weight16 kg (35.3 lb)

Cable lenght305 m (1,000 ft)

Cable colorBlack

Cable typeCAT5e, shielded

Ethernet supportUp to 1 Gbps

Conductor wire gauge24 AWG

ConductorSolid bare copper

Conductor diameter0.500 ± 0.005 mm

Insulation typeSolid polyethylene

Insulation thicknessAvg. 0.295 mm

Min.0.46 mm

Insulation diameter1.16 ± 0.02 mm

Separation (Polyester wrapping)Thick: 0.025 mm

Extent20 mm

Anti-crosstalk dividerLDPE: 4.2*0.3 mm

Cable shield (Aluminum foil). Thick0.060 mm

ESD drain wire0.4 TC

Rip cordYes

Secondary cable shield (Braid)16*8*0.16AA

Density95%

Jacket materialPolyethylene

Jacket thicknessAvg. 0.52 mm

Jacket outer diameter6.8 ± 0.30 mm

Jacket colorBlack

Storage temperature30 to 75° C (-22 to 167° F)

Installation temperature20 to 60° C (-4 to 140° F)

Ambient operating temperature40 to 80° C (-40 to 176° F)

SKU: 66144

Opis proizvoda

- Industrial-grade Ethernet cable that protects your network from elemental and electrostatic damage.
- UISP Cable Carrier is an industrial category 5e shielded cable with multi-layer protection from the environment.
The reinforced construction allows UISP Cable Carrier to operate in harsh climatic conditions, the outer sheath reliably protects the cable from rain and snow and other adverse weather conditions.

Reliable solutions for perfect data transmission
- The discharge conductor and internal shielding provide maximum protection against failure due to electrostatic discharge. The use of higher category cable ensures that there is no signal loss due to mutual twisting of cables.
These properties of the Ubiquiti UISP Cable Carrier allow it to achieve stable data rates even in the presence of electromagnetic interference.

Features
- Category 5e cable
- Insulated, weatherproof cable jacket
- Internal foil shielding and drain wire for increased ESD damage protection
- Cable length 305 m

Specifications
- Mechanical
- Box dimensions: 330 x 425 x 340 mm (13 x 16.7 x 13.4")
- Box weight: 16 kg (35.3 lb)
- Cable lenght: 305 m (1,000 ft)
- Cable color: Black
- Cable type: CAT5e, shielded
- Ethernet support: Up to 1 Gbps
- Conductor wire gauge: 24 AWG
- Conductor: Solid bare copper
- Conductor diameter: 0.500 ± 0.005 mm
- Insulation type: Solid polyethylene
- Insulation thickness: Avg. 0.295 mm
- Min.: 0.29 mm
- Insulation diameter: 1.16 ± 0.02 mm
- Separation (Polyester wrapping): Thick: 0.025 mm
- Extent: 20 mm
- Anti-crosstalk divider: LDPE: 4.2*0.3 mm
- Cable shield (Aluminum foil). Thick: 0.060 mm
- Extent: 20 mm
- ESD drain wire: 0.4 TC
- Rip cord: Yes
- Secondary cable shield (Braid): 16*8*0.16AA
- Density: 95%
- Jacket material: Polyethylene
- Jacket thickness: Avg. 0.52 mm
- Min.: 0.46 mm
- Jacket outer diameter: 6.8 ± 0.30 mm
- Jacket color: Black
- Storage temperature: -30 to 75° C (-22 to 167° F)
- Installation temperature: -20 to 60° C (-4 to 140° F)
- Ambient operating temperature: -40 to 80° C (-40 to 176° F)
- Standards:
• ANSI/TIA-568-C.2 (2009)
• ISO/IEC 11801 (Edition 2.2)
