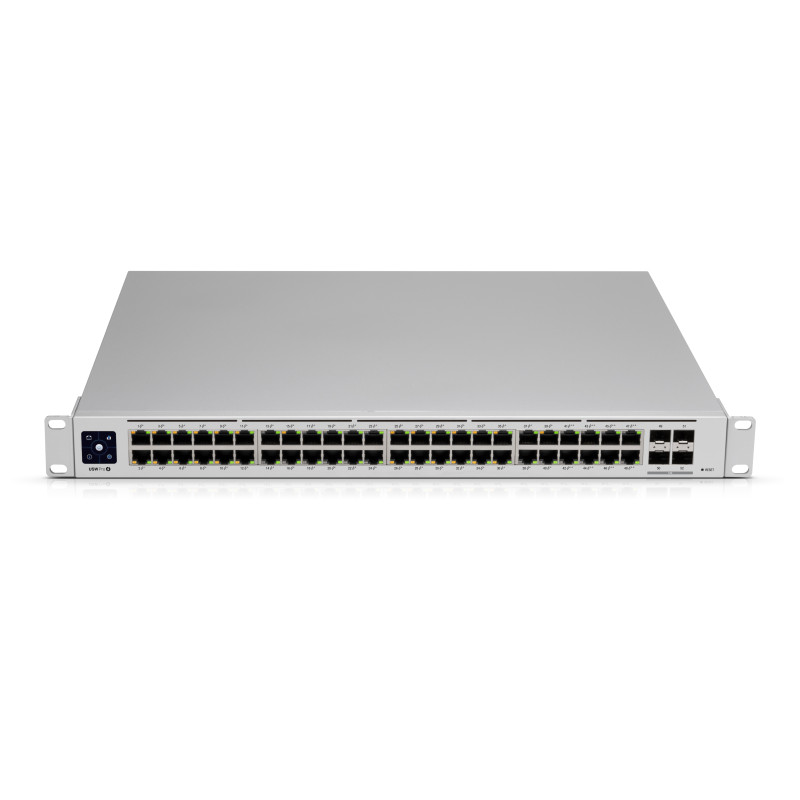

Ubiquiti UniFi Managed 48-port Gigabit Switch (32-port PoE+), 4×SFP, Touchscreen LCD, Rackmount, 195W (USW-48-PoE)
Opis proizvoda
- SFP ports enable network uplinks of up to 1 Gbps
- The UniFi PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss
- PoE support simplifies your network infrastructure and cabling
- PoE ports offer 802.3af/at to power your PoE devices, such as UniFi APs and cameras
- The 1.3" touchscreen displays status information for easy monitoring and quick troubleshooting
- You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:
* Operation mode (switching, mirroring, or aggregate) per port
* Network/VLAN configuration
* Jumbo frame and flow control services
* Network settings
* Storm control setting per port
* Spanning tree configuration
* 802.1X control and RADIUS VLAN
* Debug terminal option for command-line interface
Specifications
- Interfaces:
* Networking: 48× 10/100/1000 RJ45 Ports, 4× 1G SFP Ethernet Ports
* Management: Ethernet In-Band
- Total Non-Blocking Throughput: 52 Gbps
- Switching Capacity: 104 Gbps
- Forwarding Rate: 77.38 Mpps
- Power Method: 100-240VAC, 50/60 Hz, Universal Input
- Power Supply: AC/DC, Internal, 240W
- Voltage Range: 100 to 240VAC
- Max Power Consumption (Excluding PoE Output): 45W
- LEDs
* RJ45 Data Ports: PoE; Speed/Link/Activity
* SFP Data Ports: Link/Activity
- ESD/EMP Protection: Air: +/-16 kV, Contact: +/-12 kV
- Shock and Vibration: ETSI300-019-1.4 Standard
- Operating Temperature: -5C to 40C (23F to 104F)
- Operating Humidity: 10% - 90% Noncondensing
- Certifications: CE, FCC, IC
- Dimensions: 442.4×285×43.7 mm
- Weight: 4.52 kg (With Brackets: 4.61 kg)
PoE
- Total Available PoE: 195W
- PoE Interfaces: Ports 1-32: PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
- Max. PoE Wattage per Port by PSE 802.3at: 32W
- Voltage Range:
* 802.3af Mode: 44-57V
* 802.3at Mode: 50-57V
