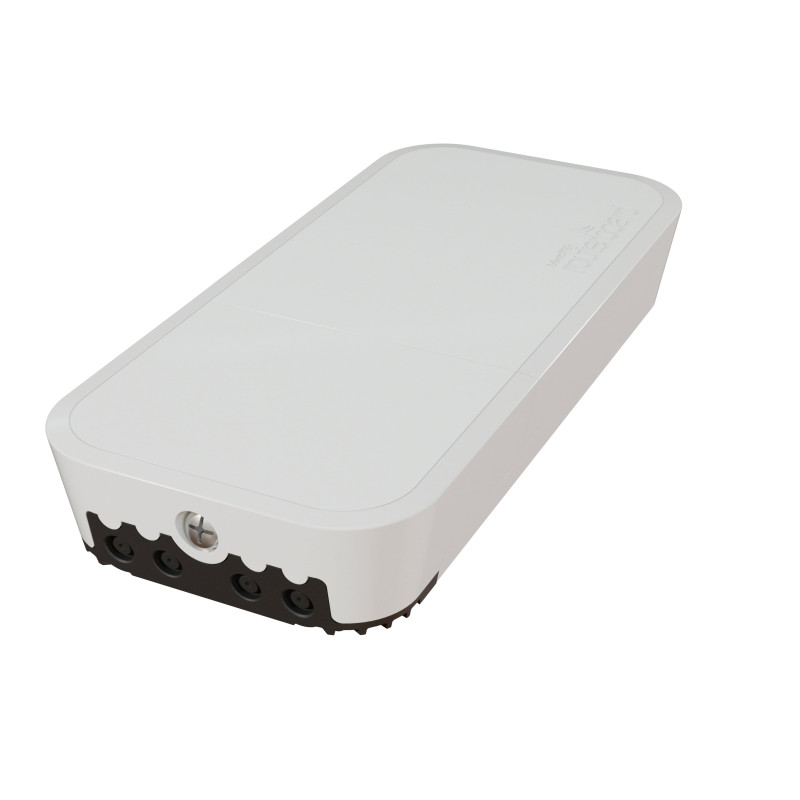

Mikrotik wAP ac LTE kit (2024) wireless AP, dual-band, 2 (DC jack, PoE-IN) 2×10/100/1000 Ethernet ports, Wi-Fi 5

- The new revision features a new LTE modem that offers improved connectivity, the addition of the popular B28 band, and a serious price drop!

- wAP ac LTE kit is weatherproof and can be fixed to any external wall from the inside of the case – for extra security and less visible attachments. The bottom part can also be secured with a special anti- vandal screw, which can only be opened by the owner.

- There is an opening in the back of the case, allowing you to run the Ethernet cable directly behind the unit and through the wall. This way the wAP attracts less attention and blends into any environment.

Specifications
- Product code: wAPGR-5HacD2HnD&EC200A-EU
- Architecture: ARM 32bit
- CPU: IPQ-4018
- CPU core count: 4
- CPU nominal frequency: auto MHz
- Switch chip model: IPQ-4018
- RouterOS license: 4
- Operating System: RouterOS v7
- Size of RAM: 128 MB
- Storage size: 16 MB
- Storage type: FLASH
- MTBF: Approximately 200'000 hours at 25C
- Tested ambient temperature: -30°C to 60°C
- IPsec hardware acceleration: Yes

Powering
- Number of DC inputs: 2 (PoE-IN, DC jack)
- DC jack input Voltage: 10-57 V
- Max power consumption: 12 W
- Cooling type: Passive
- PoE in: 802.3af/at
- PoE in input Voltage: 18-57 V

Mobile
- 2G Category: Class12
- 2G bands: 8 (900MHz) / 3 (1800MHz)
- 3G Category: R7 (21Mbps Downlinks, 5.76Mbps Uplink)
- 3G bands: 5 (850MHz) / 8 (900MHz) / 1 (2100MHz)
- LTE Category: 4 (150Mbps Downlink, 50Mbps Uplink)
- LTE FDD bands: 20 (800MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 8 (900 MHz) / 5 (850MHz) / 28 (700MHz)
- LTE TDD bands: 40 (2300MHz) / 38 (2600MHz) / 41 (2500MHz)
- TAC: 86314105

Wireless specifications
- Wireless 2.4 GHz Max data rate: 300 Mbit/s
- Wireless 2.4 GHz number of chains: 2
- Wireless 2.4 GHz standards: 802.11b/g/n
- Antenna gain dBi for 2.4 GHz: 2.5
- Wireless 2.4 GHz chip model: IPQ-4018
- Wireless 2.4 GHz generation: Wi-Fi 4
- Wireless 5 GHz Max data rate: 867 Mbit/s
- Wireless 5 GHz number of chain: 2
- Wireless 5 GHz standards: 802.11a/n/ac
- Antenna gain dBi for 5 GHz: 2.5
- Wireless 5 GHz chip model: IPQ-4018
- Wireless 5 GHz generation: Wi-Fi 5

Ethernet
- 10/100/1000 Ethernet ports: 2

Peripherals
- Number of SIM slots: 1 Modem (Micro SIM)
- MiniPCI-e slots: 1

Other
- PCB temperature monitor: Yes
- Voltage Monitor: Yes

Certification & Approvals
- Certification: CE, E-MARK, EAC, ROHS
- IP: 54

Wireless specifications
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 24 -95
54MBit/s 20 -78
MCS0 24 -95
MCS7 19 -73
MCS9 17 -68
