TP-Link 8-port Desktop preklopnik (Switch), 8×10/100M RJ45 ports + 4 PoE ports, metalno kućište (57W)
Opis proizvoda
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 53W for all PoE ports
- Supports PoE IEEE802.3af compliant PDs
- Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
- 1K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging
- LED indicators for monitoring power, link, activity and speed
- External power adapter supply
Specifications
HARDWARE FEATURES
- Interface: 8 10/100Mbps RJ45 ports (AUTO Negotiation/AUTO MDI/MDIX)
- PoE ports (RJ45): 4
- Mac Address Table: 8K
- Backbound Bandwith: 1.6Gbps
- LED Indicators: Power, Link/Act, 100Mbps, PoE Status, PoE MAX
- Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (max. 100 m)
* EIA/TIA-568 100 Ohm STP (max. 100 m)
* 100BASE-TX: UTP category 5, 5e cable (max. 100 m)
* EIA/TIA-568 100 Ohm STP (max. 100 m)
- External Power Supply: External Power Adapter(Output: 48VDC / 1.25A)
- Dimensions (W×D×H): 171×98×27 mm
SOFTWARE FEATURES
- Transmission Method: Store-And-Forward
- Advanced Functions:
* Compatible With Ieee 802.3af
* Compliant Pds

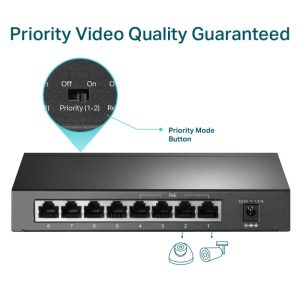

* Priority Function
* Mac Address Auto-Learning And Auto-Aging
* IEEE802.3x Flow Control For
* Full-Duplex Mode
* Backpressure For Half-Duplex Mode
OTHER FEATURES
- Consumption:
* 5.8W (max. no PD connected)
* 58W (max. with 53w PD connected)
- Operating Temperature: 0C - 40C (32F - 104F)
- Storage Temperature: -40C - 70C (-40F - 158F)
- Operating Humidity: 10-90% non-condensing
- Storage Humidity: 5-90% non-condensing
