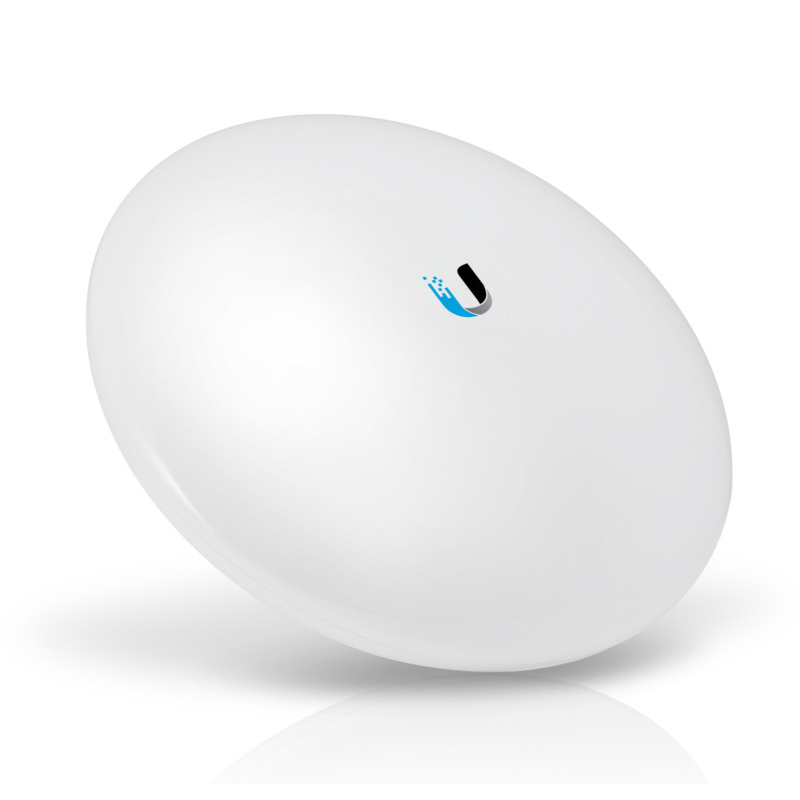

Ubiquiti airMax NanoBeam 2AC-13, 2.4GHz MIMO, 13dBi

USABILITY ENHANCEMENTS
- airMagic Channel Selection Tool
- Dynamic Configuration Changes
- Instant Input Validation
- HTML5 Technology
- Optimization for Mobile Devices
- Detailed Device Statistics
- Comprehensive Array of Diagnostic Tools, including RF Diagnostics and airView Spectrum Analyzer

ADVANCED RF ANALYTICS
- airMAX ac devices feature a multi-radio architecture to power a revolutionary RF analytics engine
- An independent processor on the PCBA powers a second, dedicated radio, which persistently analyzes the full 2.4 GHz spectrum and every received symbol to provide you with the most advanced RF analytics in the industry

REAL-TIME REOPRTING
- airOS 8 displays the following RF information:
* Persistent RF Error Vector Magnitude (EVM) constellation diagrams
* Signal, Noise, and Interference (SNI) diagrams
* Carrier to Interference-plus-Noise Ratio (CINR) histograms

UNMS App
- The NanoBeam 2AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device

ACCESSING airOS via Wi-Fi
- The UNMS app provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android)
- UNMS allows you to set up, configure, and manage the NanoBeam 2AC and offers various configuration options once youre connected or logged in

SUPERIOR PERFORMANCE
- The next-generation airMAX ac technology boosts the advantages of our proprietary TDMA protocol
- Ubiquitis airMAX engine with custom IC dramatically improves TDMA latency and network scalability
- The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology

Specifications
- Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
- Max. Power Consumption: 7.5W
- Gain: 13 dBi
- Networking Interface:
* 1× 10/100/1000 Ethernet Port
* Wi-Fi for Management
- Processor Specs: Atheros MIPS 74Kc, 533 MHz
- Memory: 64 MB DDR2

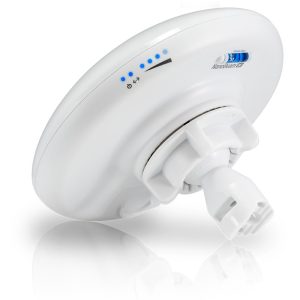

- LEDs: Power, Ethernet, (4) Signal Strength
- Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels
- Max. VSWR: 1.5:1
- Channel Sizes:
* PtP Mode: 10/20/40MHz
* PtMP Mode: 10/20/40 MHz
- Polarization: Dual Linear
- Enclosure: Outdoor UV Stabilized Plastic

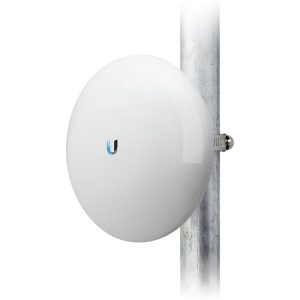

- Mounting: Pole-Mount (Kit Included), Wall-Mount
- Wind Loading: 45.4 N @ 200 km/h (10.2 lbf @ 125 mph)
- Wind Survivability: 200 km/h (125 mph)
- ESD/EMP Protection:
* Air: +/-24 kV
* Contact: +/-24 kV
- RoHS Compliance: Yes
- Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
- Vibration Test: IEC 68-2-6
- Temperature Shock Test: IEC 68-2-14
- UV Test: IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
- Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
- Operating Temperature: -40C to 70C (-40F to 158F)
- Operating Humidity: 5% to 95% Noncondensing
- Certifications: CE, FCC, IC
- Dimensions (Mount Included): 189×189×125 mm
- Weight (Mount Included): 0.530 kg

- Operating Frequency (MHz): Worldwide - 2412 - 2472
- Management Radio (MHz): Worldwide - 5150 - 5250
