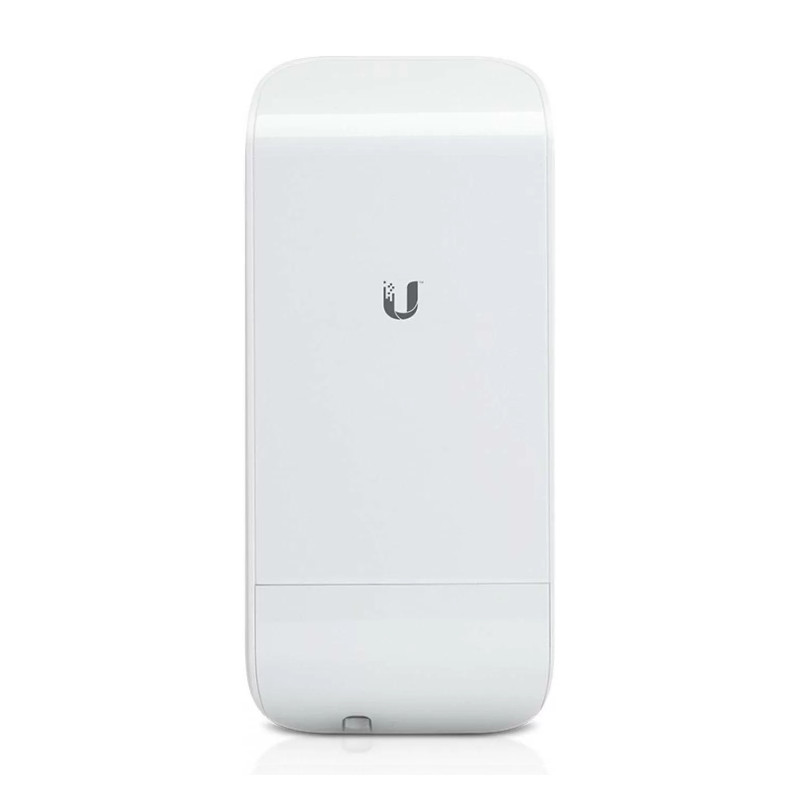

Ubiquiti airMax NanoStation M locoM2, 2.4 GHz, 5+km

PLUG AND PLAY INSTALLATION
- The NanoStation M requires no tools for assembly; only a single wrench is required for pole-mounting

VERSATILE APPLICATION USE
- The NanoStation M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX CPE

DUAL ETHERNET CONNECTIVITY
- With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration

POWERFUL airOS FEATURES
- Ubiquitis versatile airOS firmware technology enables high-performance, outdoor multi-point networking
- airOS provides features such as wireless settings, bridge or routing configuration and system management services

ADVANCED SOFTWARE TECHNOLOGY
- Ubiquitis airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments
- The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks

WINDOW / WALL MOUNTING KIT
- Use the NanoStation Mount to quickly mount the NanoStationM on a window or wall
- 180° vertical or horizontal adjustment allows for custom positioning

WALL / POLE MOUNTING KIT
- The Universal Arm Bracket is designed for convenient wall or pole mounting of the NanoStation M
- 90° tilt adjustment allows for easy positioning

Specifications
- max. Power Consumption: 5.5W
- Power Supply (PoE): 24V, 0.5A
- Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
- Operating Frequency: 2412 - 2462 MHz
- Gain: 8.5 dBi
- Networking Interface: 1 10/100 Ethernet Port
- Processor Specs: Atheros MIPS 24Kc, 400 MHz
- Memory: 32MB SDRAM, 8MB Flash
- Frequency: 2.4 GHz
- Cross-pol Isolation: 20 dB min.
- Throughput: 150+ Mbps
- Range: 5+ km
- max. VSWR: 1.4:1
- Beamwidth: 60° (H-pol) / 60° (V-pol) / 60° (Elevation)
- Polarization: Dual Linear
- Enclosure: Outdoor UV Stabilized Plastic
- Mounting: Pole-Mount (Kit Included)
- Operating Temperature: -30C to 75C (-22F to 167F)
- Operating Humidity: 5% to 95% Noncondensing
- Shock & Vibration: ETSI300-019-1.4
- Dimensions: 161×31×80 mm
- Weight: 180 g
