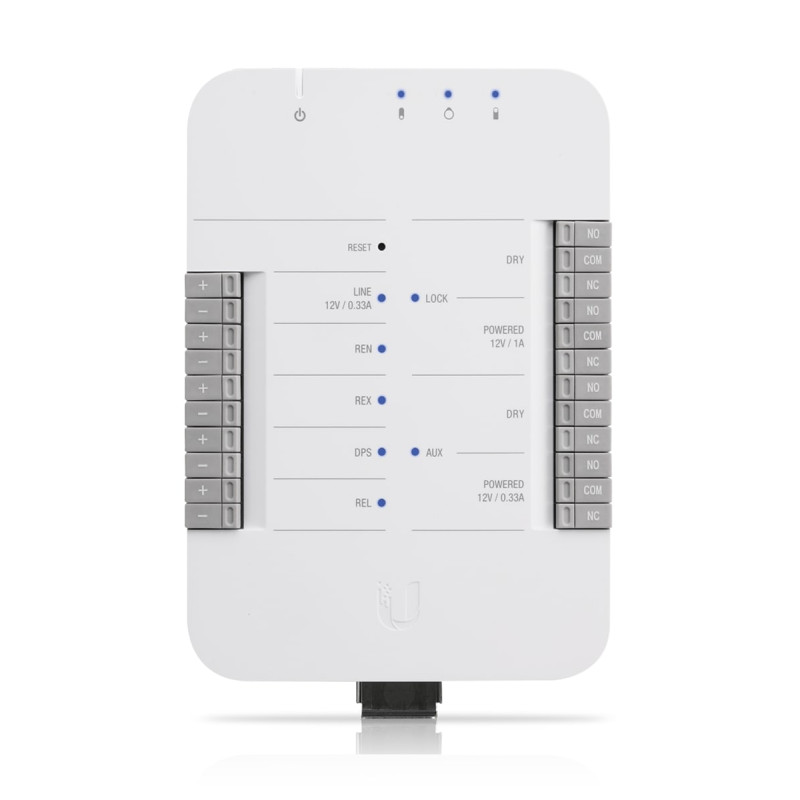

Ubiquiti UniFi Access Hub 3x GbE PoE out, 1xGbE PoE++ in

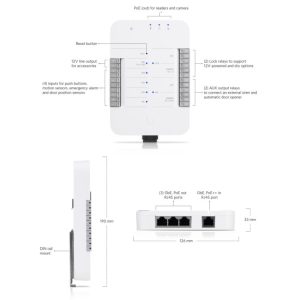

Features
- (2) Lock terminals (12V and Dry)
- (2) AUX terminals for an external siren and automatic door opener
- (4) Additional inputs (sensors and buttons)
- Connect and power using PoE++

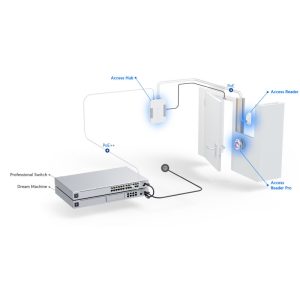

- Connect to two UniFi Access readers and one UniFi Protect camera or UniFi Protect Chime

Specifications
Mechanical
- Dimensions: 190 x 126 x 30.5 mm (7.5 x 5 x 1.2")
- Weight: 457 g (1 lb)
- Enclosure material: Plastic enclosure with metal mount plate
- Mounting options: DIN rail

Hardware
- Networking interface: (4) 1 GbE
- PoE interface: (3) PoE (Pins 1, 2+; 3, 6-)
- Power method:
• PoE++
• UL 294 Power-limited Class 2 PSU
• UL 60950-1/62368-1 LPS/PS2 PSU
- Supported voltage range: 48V DC
- Max. power consumption: 51W
- Total available PoE: 60W
- Max. PoE wattage per port: 15.4
- Voltage range PoE mode: 44–57V DC
- Input terminals
• REX: request to exit
• REN: request to enter
• REL: remote release
• DPS: door position sensor
- Dry output relay
• Lock: rated 30V DC, up to 1A
• Aux: rated 30V DC, up to 1A
- Powered output relay
• Lock: 12V DC, up to 1A
• Aux: 12V DC, up to 0.33A
• Line: 12V DC, up to 0.33A
- Button: (1) Factory reset

Recommend max. cable length
18 AWG UACC-Cable-DoorLock 20 AWG length 22 AWG length 24 AWG length
Relay length

UA-Lock-Electric (400mA) 100 m (217 ft) 42 m (328 ft) 66 m 138 ft) 25 m (82 ft)

UA-Lock-Magnetic-270kg (800mA) 46 m (151 ft) 30 m (98 ft) 20 m (66 ft) 12 m (29 ft)

UA-Lock-Magnetic-540kg (500mA) 80 m (262 ft) 51 m (167 ft) 32 m (105 ft) 20 m (66 ft)

Other locks (1A) 36 m (118 ft) 24 m (79 ft) 15 m (49 ft) 9 m (30 ft)

- Operating environment: Indoor use only
- Ambient operating temperature: 0 to 40° C (32 to 104° F)
- Ambient operating humidity: 5 to 90% noncondensing
- Software information: The software version of a product can be checked at https://unifi.ui.com
- UL 294 level:
• Destructive attack: Level I
• Line security: Level I
• Endurance: Level I
• Standby power: Level I
- UL 294 statement
• Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
• The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
- PoE cabling requirements:
• Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
• The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
- CAN/ULC-60839-11-1 Grade: Grade assignment: I
- Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- Document number, and issue date and/or revision level: UA-Hub, Ver 02

LEDs
- PoE in:
• Steady white: Pending adoption
• Steady blue: Adopted
• Alternating white/blue: Firmware updating
- PoE out : Blinking white: Active signal
- Input terminals: Blinking white: Active signal
- Output relays: Blinking white: Relay triggered

Software
- Management application: UniFi Access: Version 1.22.17 and later
