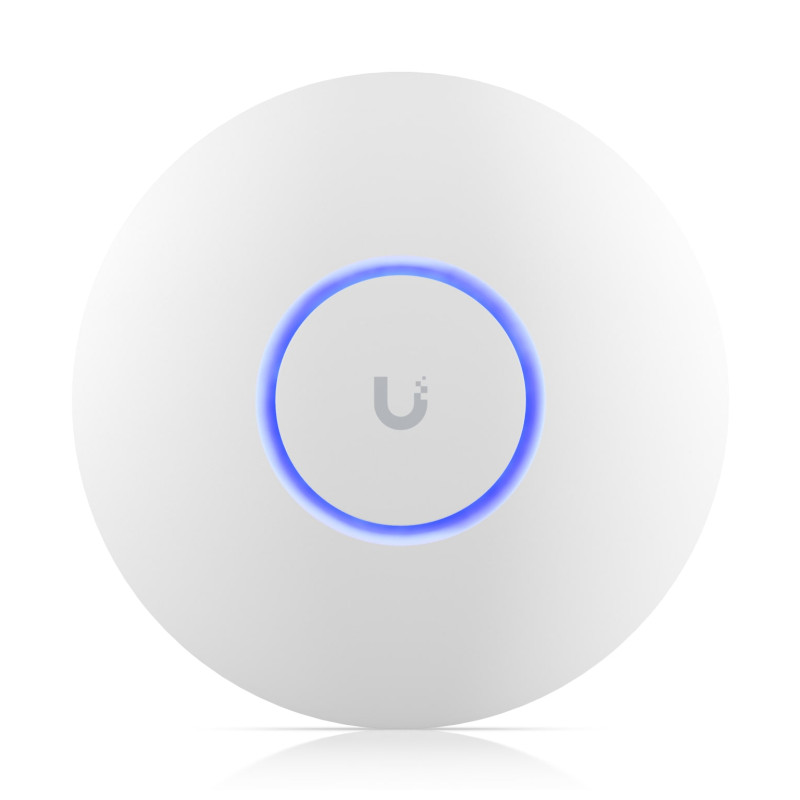

Ubiquiti UniFi U7-Pro-Max Wi-Fi7 PoE+ stropna pristupna točka 1×2.5 GbE RJ45 port, 25W
Opis proizvoda
Features
- WiFi 7 with 6 GHz support
- 8 spatial streams
- Real-time spectral analysis for enhanced channel selection*
- 160 m2 (1,750 ft2) coverage
- 500+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
Specifications
Mechanical
- Dimensions: 206 x 46 mm (8.1 x 1.8")
- Weight: 680 g (1.5 lb)
- Enclosure material: Polycarbonate, aluminum
- Mount material: Stainless steel (SUS304), galvanized steel (SGCC)
Hardware
- Networking interface: (1) 1/2.5 GbE RJ45 port
- Management interface: Ethernet
- Power method: PoE+
- Power supply: UniFi PoE switch
- Supported voltage range: 44—57V DC
- Max. power consumption: 25W
Max. TX power
- 2.4 GHz: 23 dBm
- 5 GHz: 29 dBm
- 6 GHz: 23 dBm
MIMO
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- 5 GHz: 4 x 4 (DL/UL MU-MIMO)
- 6 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. data rate
- 2.4 GHz: 688 Mbps (BW40)
- 5 GHz: 8.6 Gbps (BW240)
- 6 GHz: 5.7 Gbps (BW320)
Antenna gain
- 2.4 GHz: 4 dBi
- 5 GHz: 6 dBi
- 6 GHz: 5.9 dBi
- LEDs: White/blue
- Button: Factory reset
- Mounting: Wall, ceiling (Included)
- Ambient operating temperature: -30 to 60° C (-22 to 140° F)
- Ambient operating humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC
Software
- WiFi standards: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
- Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
- BSSID: 8 per radio
- VLAN: 802.1Q
- Advanced QoS: Per-user rate limiting
- Guest traffic isolation: Supported
- Concurrent clients: 500+
Supported Data Rates
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- 802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- 802.11ax (WiFi 6/6E): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11be (WiFi 7)
- 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
- 6 GHz: 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
- UniFi Network: Version 8.2.93 and later
