Ubiquiti WiFiMan Wizard – 2.4 GHz & 5GHz unlicensed band scanning, 240 minutes continous scanning battery life, BLE pairing, USB-C charging, iPhone Magsafe attachable support

UBIQUITI

Ubiquiti WiFiMan Wizard – 2.4 GHz & 5GHz unlicensed band scanning, 240 minutes continous scanning battery life, BLE pairing, USB-C charging, iPhone Magsafe attachable support

152,43 €

Cijena uključuje PDV

Sidrena cijena (2026-09-10): 152,43 €

Dostupno

Specifikacije

Dimensions78.5 x 50.5 x 7.9 mm (3.1 x 2 x 0.3")

Weight32 g (1.1 oz)

Enclosure materialPlastic

WeatherproofingIP55

Management interfaceBluetooth

Power methodLi-ion battery

Power supplyRechargeable Li-ion battery, 3.7V DC, 300mAh

Max. power consumption32.4mW

Charger voltageUSB-C, 5V DC/1A

LEDWhite/blue/red

Ambient operating temperature0 to 40° C (32 to 104° F)

Ambient operating humidity10 to 90% noncondensing

CertificationsCE, FCC, IC

Amplitude range96 dBm to 0 dBm

Amplitude resolution1 dBm

Management applicationUniFi WiFiman iOS: Version 0.18.0 and later

UniFi WiFiman AndroidVersion 1.15.0 and later

SKU: 65401

Opis proizvoda

- WiFiMan Wizard is a portable spectral analyzer designed for the WiFiMan iOS and Android mobile application with which it communicates wirelessly via Bluetooth. Together with a Lidar-equipped smartphone, it is able to project the WiFi scan on a map created by the Lidar and your movement/field walk around the building. The spectrum analyzer works in the license-free bands 2.4 - 2.5 GHz and 5.15 - 5.85 GHz with a sensitivity of up to -96 dBm. The device itself has an integrated battery with a capacity of 300mAh, a maximum duration of 240 minutes for continuous scanning and a USB-C connector for recharging.

Features
- 2.4 GHz and 5 GHz unlicensed band scanning
- 240 minutes continuous scanning battery life
- BLE smartphone pairing with USB-C charging port
- Support iPhone Mag-safe with Mag-safe cover
- Works with WiFiman mobile app since version 0.18.0 for iOS and 1.15.0 for Android

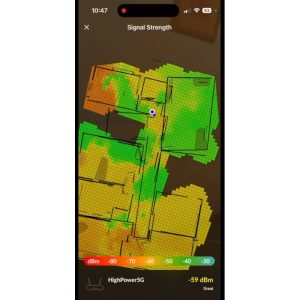

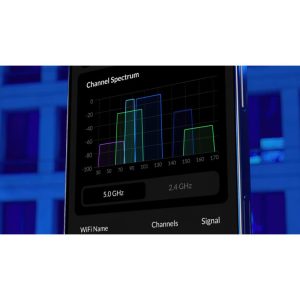

- Spectral analyzer, scheduler and frequency mapping inside the building using Lidar technology

Mechanical
- Dimensions: 78.5 x 50.5 x 7.9 mm (3.1 x 2 x 0.3")
- Weight: 32 g (1.1 oz)
- Enclosure material: Plastic
- Weatherproofing: IP55

Hardware
- Management interface: Bluetooth
- Power method: Li-ion battery
- Power supply: Rechargeable Li-ion battery, 3.7V DC, 300mAh
- Max. power consumption: 32.4mW
- Charger voltage: USB-C, 5V DC/1A
- LED: White/blue/red
- Buttons
• (1) Power
• (1) Factory-reset
- Ambient operating temperature: 0 to 40° C (32 to 104° F)
- Ambient operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC

SSID Scan
- Frequency range
• 2.4 to 2.5 GHz
• 5.15 to 5.85 GHz
- Amplitude range: -96 dBm to 0 dBm
- Amplitude resolution: 1 dBm

Software
- Management application: UniFi WiFiman iOS: Version 0.18.0 and later
- UniFi WiFiman Android: Version 1.15.0 and later
