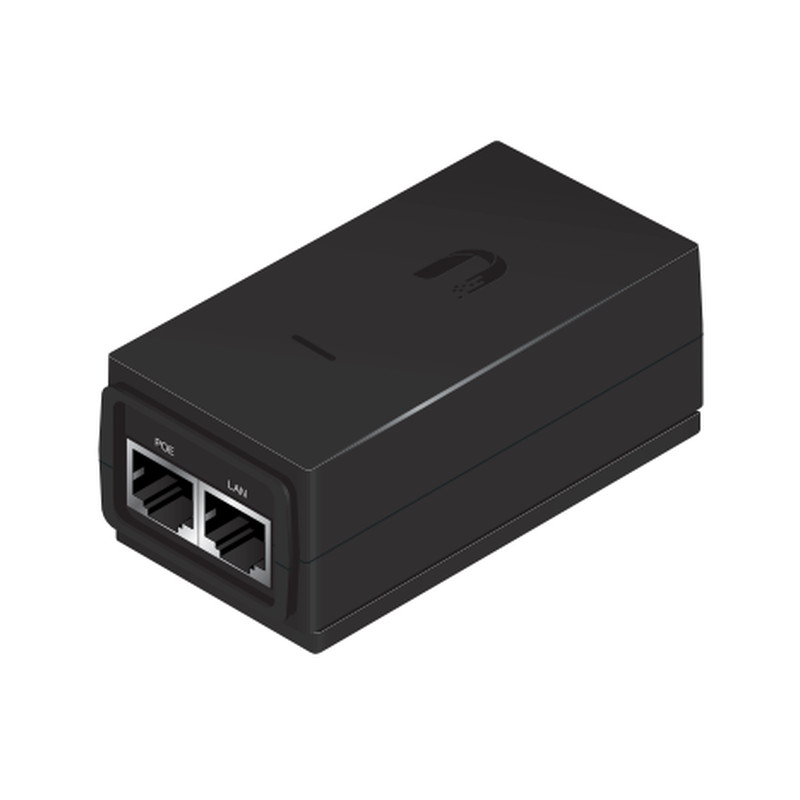

Ubiquiti PoE adapter 24-12W-G

16,69 €

Cijena uključuje PDV

Najniža cijena u zadnjih 30 dana: 16,06 €

Dostupno

Specifikacije

Output Voltage24VDC @ 0.5A

LAN Activity IndicatorNo

Gigabit LAN PortYes

Remote Reset CapabilityYes

Reset ButtonYes

Input Voltage90-260VAC @ 47-63 Hz

SKU: 38998

Opis proizvoda

DEVICE PROTECTION
- PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events

CONVENIENT WALL-MOUNTING
- Wall-mountable using the optional wall-mount brackets

SEAMLESS airGateway COMPATIBILITY
- Work with the airGateway to bridge airMAX connections to Wi-Fi at customer locations

Specification
- Output Voltage: 24VDC @ 0.5A
- LAN Activity Indicator: No
- Gigabit LAN Port: Yes
- Remote Reset Capability: Yes
- Reset Button: Yes
- Input Voltage: 90-260VAC @ 47-63 Hz
- Input Current:
* 0.3A @ 120VAC
* 0.2A @ 240VAC
- Inrush Current:
* <30A Peak @ 120VAC
* <60A Peak @ 230VAC
- Efficiency: 75+ %
- Output Ripple: 1% max.
- Switching Frequency: 50 kHz
- Line Regulation: +/- 1%
- Load Regulation: +/- 3%
- 2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-)
- Operating Temperature: 0C to 40C (32F to 104F)
- Storage Temperature: -30C to 70C (-22F to 158F)
- Operating Humidity: 35 to 95% Noncondensing
- AC Connector: IEC-320 C6
- Data IN / POE: RJ45 Shielded Socket
- Surge Protection: Difference and Common Mode
- Clamping Protection: 11V Data, 60V Power
- Max. Surge Discharge: 1500A (8/20 µs) Power
- Peak Pulse Current: 36A (10/1000 µs) Data
- Shunt Capacitance: <5 pF data
- Dimensions: 87×44×29 mm
- Weight: 99.4 g
